Lifan 250cc V-Twin
Lifan LF250
Roketa MC-18
FRAME
FENDERS
BATTERY CASE

email
sales@mefast.com
 for Owners Manual
MC-18 LF250 Frame
Frame
1
 Frame assembly
 920.001
2
 Upper connecting plate, RH
 920.002
3
 Front connecting plate
 920.003
4
 Bolt M8X150
 920.004
5
 Bolt M8X110 920.005
6
 Nut M8
 920.006
7
 Bolt M8X150 920.007
8
 Ignition coil holder (No 1)
 920.008
9
 Lock, helmet
 920.009
10
 Screw M6X25
 920.010
11
 Ignition coil holder (No 2)
 920.011
12
 Bolt M5X20
 920.012
13
 Lower connecting plate
 920.013

mefast

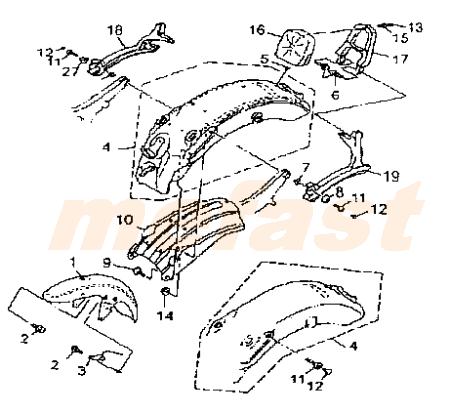

Fenders
1
 Front fender 921.001
2
 Bolt M8X12
 921.002
3
 Hook, cable
 921.003
4
 Rear fender comp.
 921.004
5
 Bolt M8X12 921.004
6
 Bolt M8X12 921.004
7
 Outer bush, back seat holder 921.004
8
 Inner bush, back seat holder
921.004
9
 Bolt M8X12 921.004
10
 Bracket, rear seat
 921.004
11
 Screw M10X60 921.004
12
 Cap
 921.004
13
 Cap
 921.004
14
 Nut M10
 921.004
15
 Screw M10X60
 921.004
16
 Back seat
 921.004
17
 Upper holder, back seat 921.004
18
 Right holder, back seat 921.004
19
 Left holder, back seat
 921.004

mefast

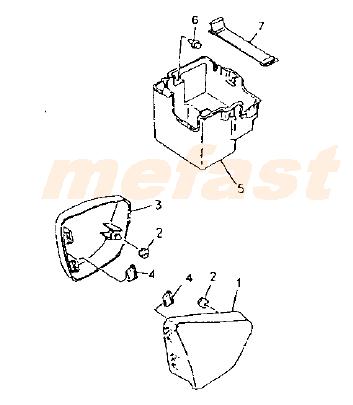

Battery Case
1
 Side cover, LH
 922.001
2
 Rubber ring ( No 1)
 922.002
3
 Side cover, RH
 922.003
4
 Rubber ring (No 2)
 922.004
5
 Battery case
 922.005
6
 Bolt M6X16
 922.006
7
 Battery band
 922.007
8
 Battery
 922.008
