Lifan 250cc V-Twin Lifan LF250 FRONT WHEEL REAR WHEEL BRAKE

email
sales@mefast.com
 for Owners Manual

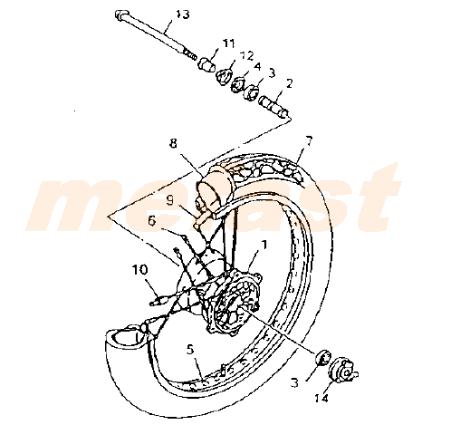

FRONT WHEEL

1	Wheel hub	928.001		8	Tube front tire	928.008
2	Inner spacer	928.002		9	Band, front tire	928.009
3	Bearing	928.003		10	Nut, spoke	928.010
4	Oil seal 20357	928.004		11	Right bushing, front wheel	928.011
5	Front rim	928.005		12	Dustproof ring	928.012
6	Inner spoke	928.006		13	Front axle	928.013
7	Tire, front	928.007		14	Speedometer sensor	928.014

Front Wheel BRAKE

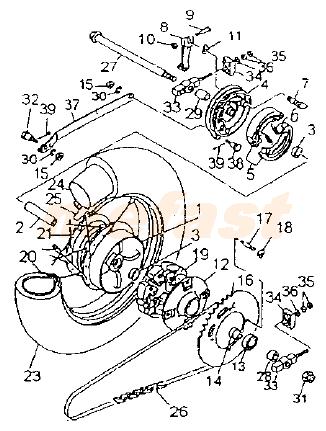

REAR WHEEL

1		930.001	Rear wheel hub	18	Bolt M6X16	930.018
2		930.002	Inner spacer	19	Damping block	930.019
3		930.003	Bearing	20	Rear rim	930.020
4		930.004	Rear brake cover	21	Inner spoke	930.021
5		930.005	Brake shoe	22	Nut, spoke	930.022
6		930.006	Spring, brake shoe	23	Tire, rear	930.023
7		930.007	Brake cam	24	Tube, rear tire	930.024
8		930.008	Brake arm	25	Band, rear tire	930.025
9		930.009	Bolt M6X35	26	Chain	930.026
10		930.010	Nut M6	27	Rear axle	930.027
11		930.011	Indicator, brake wear	28	Left spacer, rear wheel	930.028
12		930.012	Sprocket hub	29	Right spacer, rear wheel	930.029
13		930.013	Bearing	30	Spring washer 8	930.030
14		930.014	Bushing	31	Nut M14	930.031
15		930.015	Nut M8	32	Bolt	930.032
16		930.016	Sprocket	33	Chain adjuster	930.033
17		930.017	Stud bolt	34	Retainer	930.034
