Lifan 250cc V-Twin
Lifan LF250
CTM 2V49FMM
Clutch
Starter Clutch

email
sales@mefast.com
 for Owners Manual
starter clutch
Engine
STARTER CLUTCH
1
 Gears
 912.001

4
 Washer 39X25X1
 912.004
2
 Gears shaft
 912.002
5
 Clutch box
 912.005
3
 Clutch gears
 912.003
6
 Screw M8X16
 912.006


Clutch

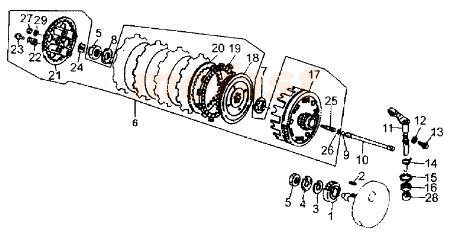

CLUTCH
1
 Driving gear
 913.001

12
 Washer 8
 913.012
2
 Plane key
 913.002
13
 Screw M8X14
 913.013
3
 Circlip 913.003
14
 Spring
 913.014
4
 Thrust washer
 913.004
15
 Circlip
 913.015
5
 Nut M16X1
 913.005
16
 Oil seal
 913.016
6
 Clutch assembly
 913.006
17
 Driving cup comp clutch
 913.017
7
 Washer with spline
 913.007
18
 Driving cup, clutch
 913.018
8
 Washer c
 913.008
19
 Driving friction disk, clutch
 913.019
9
 Steel ball 8.7
 903.009
20
 Drivren friction disk clutch
 913.020
10
 Push rod
 903.010
21
 Pressing disk
 913.021
11
 Clutch lever assembly
 903.011



Clutch 2

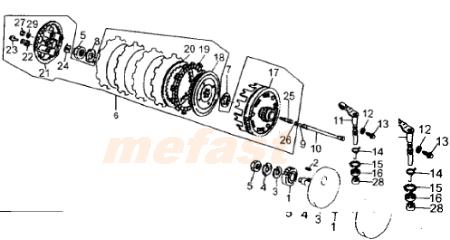

CLUTCH
22
 Clutch spring
 913.022

26
 O-ring
 913.026
23
 Screw
 913.023
27
 Nut M6
 913.027
24
 Push pole
 913.024
28
 Needle Bearing HK1412Z
 913.028
25
 Adjusting screw, clutch
 913.025
29
 Washer
 913.029
