Lifan 250cc V-Twin Lifan LF250 Swing-Arm Steering Stem

email
sales@mefast.com
 for Owners Manual

Steering

1		924.001	Upper Socket , bottom bearing	18	Bolt M6X16	924.018
2		924.002	Upper socket, upper bearing	19	Cap	924.019
3		924.003	Lower socket, upper bearing	20	Holder, headlight	924.020
4		924.004	Ball	21	Bracket	924.021
5		924.005	Dustproof ring	22	Bolt M6X12	924.022
6		924.006	Adjusting nut	23	Hook	924.023
7		924.007	Lock bolt steering post	24	Bolt M6X12	924.024
8		924.008	Inner bushing	25	Holder, meter	924.025
9		924.009	Outer bushing	26	Bolt M6X16	924.026
10		924.010	Bolt M8X35	27	Lock, steering post	924.027
11		924.011	Guard frame, headlight	28	Cap, steering post lock	924.028
12		924.012	Rubber ring	29	Spring	924.029
13		924.013	Washer	30	Lable	924.030
14		924.014	Handelbar clamp, bottom	31	Rivet	924.031
15		924.015	Wire clamp	32	Ball	924.032
16		924.016	Nut M10	33	Lower socker, bottom bearing	924.033
17		924.017	Handlebar clamp, upper

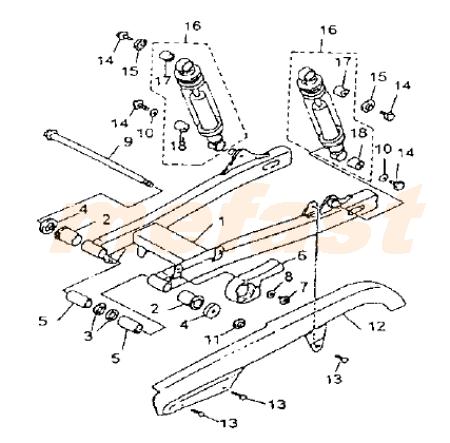

Swing-Arm

1		923.001	Swing arm	10	Washer 8	923.010
2		923.002	Outer bushing, swing arm	11	Nut M5X12	923.011
3		923.003	Oil seal	12	Chain case	923.012
4		923.004	Dustproof  cover	13	Bolt M6X12	923.013
5		923.005	Inner bush, swing arm	14	Bolt M8X35	923.014
6		923.006	Guider, chain	15	Washer 8	923.009
7		923.007	Bolt M5X12	16	Rear shock	923.009
8		923.008	Washer 5	17	Upper bush	923.009
9		923.009	Shaft, saing arm	18	Lower bush	923.009

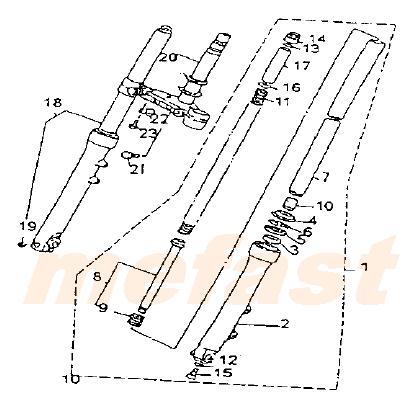

1	Front shock LH	925.001		12	Washer 6	925.012
2	Cylinder, LH	925.002		13	O-ring	925.013
3	Bearing	925.003		14	Bilt, end cover	925.014
4	Dustproof ring	925.004		15	Bolt M6X25	925.015
5	Oil seal	925.005		16	Circlip	925.016
6	Clip	925.006		17	Piston	925.017
7	Front fork pipe	925.007		18	Front shock, RH	925.018
8	Piston pipe	925.008		19	Bolt M6X6	925.019
9	Spring	925.009		20	Steering arm assembly	925.020
10	Sealing plug	925.010		21	Bolt M10X30	925.021
11	Spring	925.011
