| Model: |
TMEC200-1 |
| Manufacturer: |
TEMC |

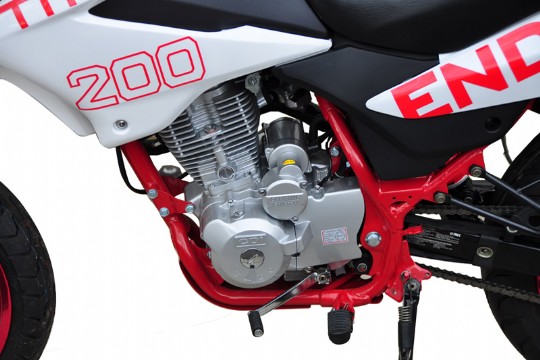

| Engine: |
Single cylinder, 4-stroke, air-cooled |
| Engine Displacement: |
196.98cc |
| Compression Ratio: |
9.2:1 |
| Bore x Stroke: |
63.50mm x 62.20mm |
| Max Power: |
14.08 hp @ 8500 rpm±350
rpm |
| Max Torque: |
9.96 lb-ft @ 6500 rpm±350
rpm |
| Engine Oil Volume: |
1 L |
| Start Mode: |
Electric start |
| Ignition Mode: |
CDI |
| Max Speed: |
75 MPH |

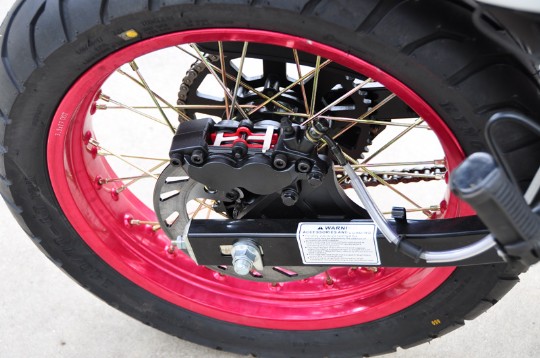

| Brake System: |
Hydraulic Disk (front and rear) |
| Wheelbase: |
1350mm |
| Min Ground Clearance: |
230mm (9.06 in) |
| Overall Dimension (LxWxH): |
2045mm x 840mm x 1120mm |
| Max Load: |
159kg (350 lbs) |
| Net Weight: |
123kg (271 lbs) |
| Fuel Tank Capacity: |
3.17 gallons |
| Tire Size: |
Front/Rear - 2.5-17/225KPa |
|
|
