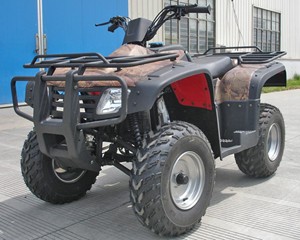

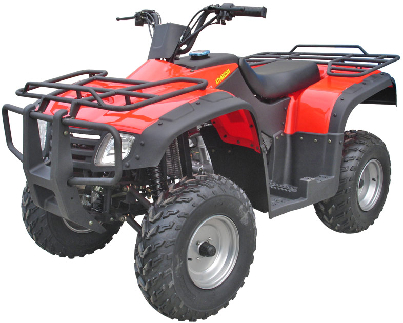

250cc Utility ATV
ATV-90 |
|
CONFIGURE |
|
Colors available |
Red/blue/army green camo/maple camo |
|
ENGINE INFO |
|
Engine type |
CG |
|
Engine brand |
|
|
Displacement |
250cc |
|
Cooling |
Water cooled |
|
Max horsepower |
13．9HP |
|
Max torque |
15n.m/5500rpm |
|
Bore*stroke |
2.5 x 2.45 |
|
Max speed |
34.18mile/h |
|
Climbing ability |
25° |
|
Ignition |
CDI |
|
Starting system |
ELECTRIC |
|
Battery |
12v4ah |
|
Carburetor brand |
Pz30 |
|
Engine oil |
SAE 15W/40SF |
|
Gear oil |
85W/40 |
|
CHASSIS ETC |
|
Clutch |
MANUAL |
|
Transmission |
4-SPEED+REVERSE |
|
Driveline |
CHAIN DRIVE |
|
Driving wheel |
Rear wheel drive |
|

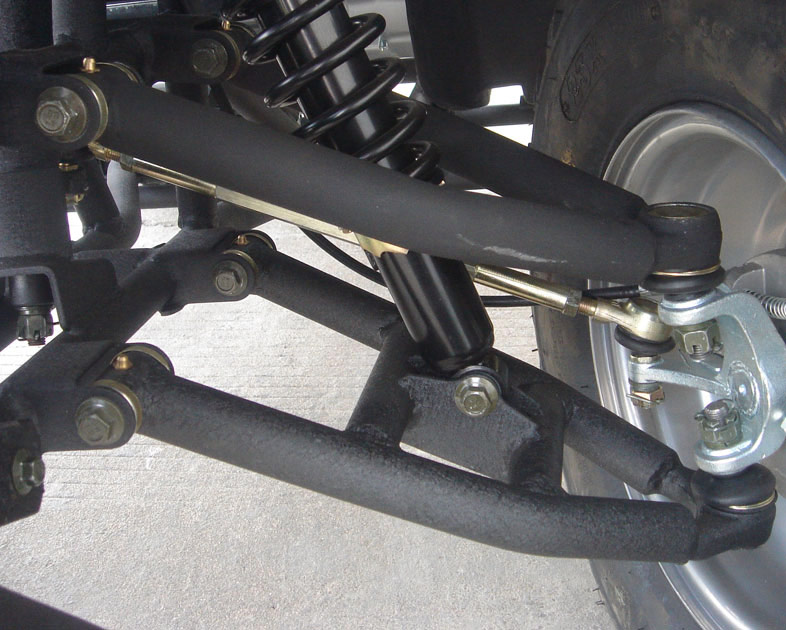

Suspension,front/rear |
Double a-arm/Single a-arm |
|
Brakes,front/rear |
Drum/disc |
|
Brake operation |
Hand+foot |
|

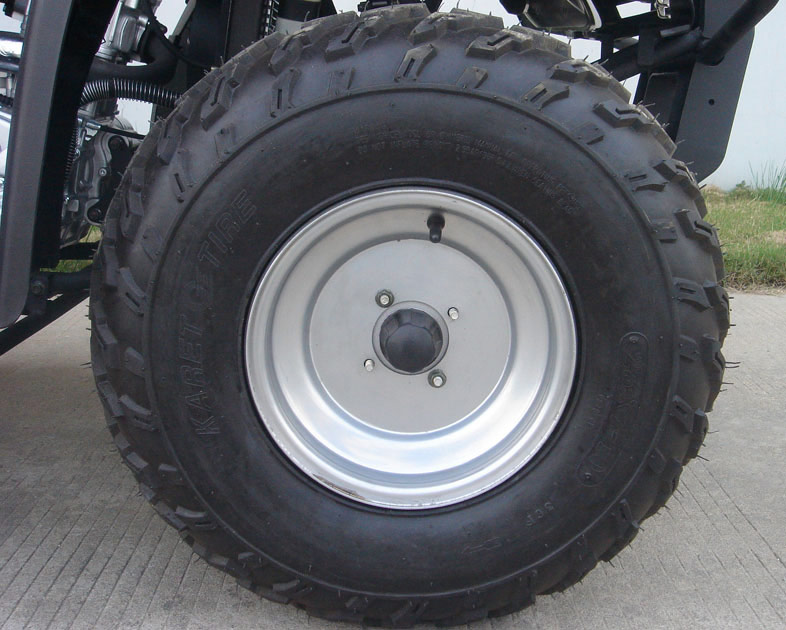

Tires,front/rear |
23*7-10/22*10-10 |
|
Fuel capacity/type |
1.05Gal |
|
Weight,G.W./N.W. |
396LBS/462LBS |
|
Max load |
363lbs |
|
DIMENSIONS |
|
Wheelbase |
45.37inches |
|
OA L*W*H |
72.8*40.6*44.5inches |
|
Height to seat |
32.3inches |
|
Min ground clearance |
6.1 inches |
|
Carton size |
70.86"X45.3X33.8 |
|
Shipping info |
39pcs/HQ |
|
|
