Controller CT 611B9 Wiring schematic |
|
Speed Controller SPD-611B9 Installation and Wiring |
| Rated Voltage | 36 Volts |
| Rated Motor | 500 Watts or less |
| Conversion Efficiency | 95% |
| Under Voltage Protection | 31.5 Volts |
|
Power Connector Plug |
|
| Motor Connector Plug |  |

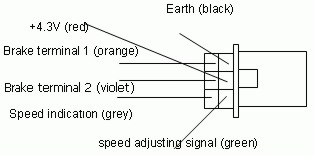

| Six Wire Connector |  |
| Key Switch Connector |  |
| Power Indicator Connector |  |
| Charger Connector |  |
| Brake Signal Connector |  |
