Maintenance-Free Rechargeable Sealed Lead-Acid Battery
 |  |
| Model Number | Voltage | 5hr Rate |
20hr Rate |
100hr Rate |
Watts Per Cell |

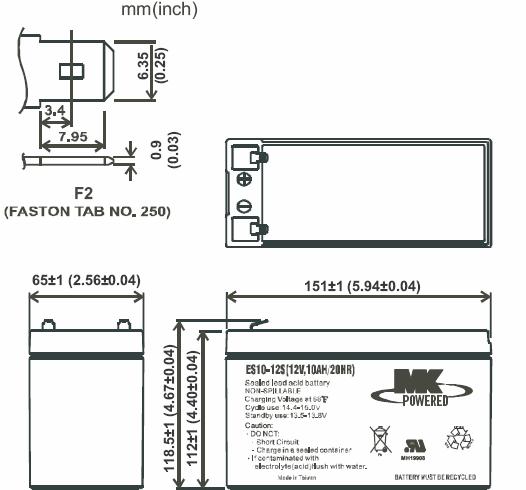

Weight (lb.) | Length (in.) | Width (in.) | Height* (in.) |
| ES10-12S | 12 | 8.5 | 10 | N/A | N/A | 7.34 | 5.94 | 2.56 | 4.65 |
12V 8.5 AH Battery
| SPECIFICATIONS | |||
| Nominal Voltage (V): | 12 Volt |
||
| Nominal Capacity: | 20hour rate ( 0.5A to 10.50V ) 10Ah 10hour rate ( 1A to 10.50V ) 10Ah 5hour rate ( 1.7A to 10.20V ) 8.5Ah 1C ( 10A to 9.60V ) 4.5Ah 3C ( 30A to 9.60V ) 3.5Ah |
||
| Weight: | 7.34 Lbs. (3.33 kg) |
||
| Internal Resistance (at 1KHz): | 15 mΩ |
||
| Maximum Discharge Current for 30 seconds: | 200A |
||
| Maximum Discharge Current for 5 seconds: | 400A | ||
| Operating Temperature Range: | SPECIFICATIONS 0°C(32°F) to 40°C (104°F) -15°C(5°F) to 50°C (122°F)< -15°C(5°F) to 40°C (104°F)< |
||
| Charge Retention (shelf life) at 20°C (68°F): | 1 month 92% 3 month 90% 6 month 80% |
||
| Charging Methods at 25°C (77°F) Cycle use: | Charging Voltage 14.4 to 15.0V Maximum Charging Current 3A |
||
| Standby use: | Float Charging Voltage 13.50 to 13.80V No current limit required |
||
| Life expectancy Cycle Use: | 100% depth of discharge 200 cycles 80% depth of discharge 225 cycles 50% depth of discharge 500 cycles |
||
| Standby Use: | 3~5 years |
||
| Case Material: | ABS |
||
| Terminal: | F2 |
||
|
|||
