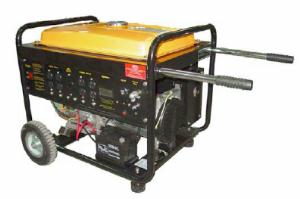

Portable, electric start, generator with 8130 Watts of surge output power and 5650 Watts of continuous output power.
3 Year Warranty
USGENERATOR.US |
|
|
| DEK
Model 5650EL |
Why
DEK ? DEK Warranty |
|
Portable, electric start, generator with 8130 Watts of surge output power and 5650 Watts of continuous output power. 3 Year Warranty
|
|
Comes with 220V AC, 120V AC and 12V DC receptacles, 12 hp 4-stroke OHV gasoline engine, low oil shutdown, super-silent muffler, integral voltmeter, GFCI circuit breaker protection, large fuel tank, protective frame, wheel kit with never-go-flat tires, 12V cigarette lighter adapter, 12V jumper cable plug and cables. |
| ALTERNATOR | ||
| Alternator type | Single phase, synchronous | |
| Max. AC output |
5650 Watts | |
| Surge AC
output |
7345 Watts | |
| Voltage |
220V AC, 120V AC, 12V DC | |
| Power factor | 1 |
|
| Excitation
system |
Self excitation | |
| ENGINE | ||
| Engine model |
DJ340 | |
| Displacement | 337 cubic centimeters | |
| Compression ratio | 8.0:1 | |
| Engine speed | 3600 RPM | |
| Output @ 3600 RPM | 11 hp | |
| Starter | Recoil and
electric starter |
|
| Cooling |
Air cooled | |
| Ignition
system |
Transistorized,
pointless CDI |
|
| Oil alarm | Low oil shutdown | |
| Fuel |
Unleaded gasoline | |
| Fuel tank
capacity |
6.6 gallons | |
| Lube oil capacity | 1.5 quarts | Min. order 8 Units |
| Noise level | 71 dB(A) at 7 meters |
