Colors available
|
Red
Yellow
Blue
Black |
Decals
|
|
Tool kit
|
|
Speed limiter
|
|
| Assembly required |
Tire, seat, steering wheel |
ENGINE
|
Engine type
|
Four stroke , single cylinder
|
Displacement
|
90cc |
Cooling
|
Air-cooled |
Max horsepower
|
2.9 h.p ./ 7000~8000r / min |
Max torque
|
5.6n.m / 5600~6000r / min |
Bore*stroke
|
1.85 * 1.95 inches |
Max speed
|
24.9 mph |
Climbing ability
|
7 degree |
Ignition
|
C.D.I |
Starting system
|
Electric |
Battery
|
12V 4Ah |
Carburetor brand
|
PZ19 |
Engine oil
|
SAE15W / 40SF |
CHASSIS
|
Clutch
|
Automatic |
Driveline
|
Chain-drive |
Driving wheel
|
Rear wheel drive |

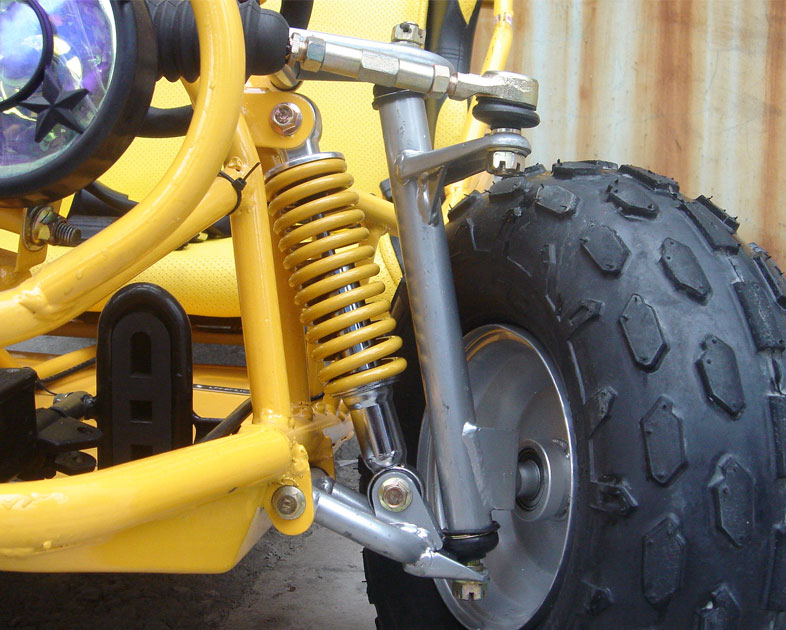

Suspension,front/rear
|
Double a-arm / single a-arm |
Brakes,front/rear
|
Rear disc |
Brake operation
|
Foot |
Tires
|
Front 145 / 70-6
Rear 145 /7 0-6 |
Fuel capacity
|
1.3 gal |
Weight
|
Gross 330.7 lbs
Net 297.6 lbs |
Max load
|
88 lbs |
DIMENSIONS
|
Wheelbase
|
49.6 inches |
OA L*W*H
|
63.8 * 29.1 * 43.3 inches |
Height to seat
|
10.6 inches |
Min ground clearance
|
3.3 inches |
Carton size
|
62.2 * 29.5 * 20.7
inches
|
Shipping info
|
40HQ container 110 pcs
|
