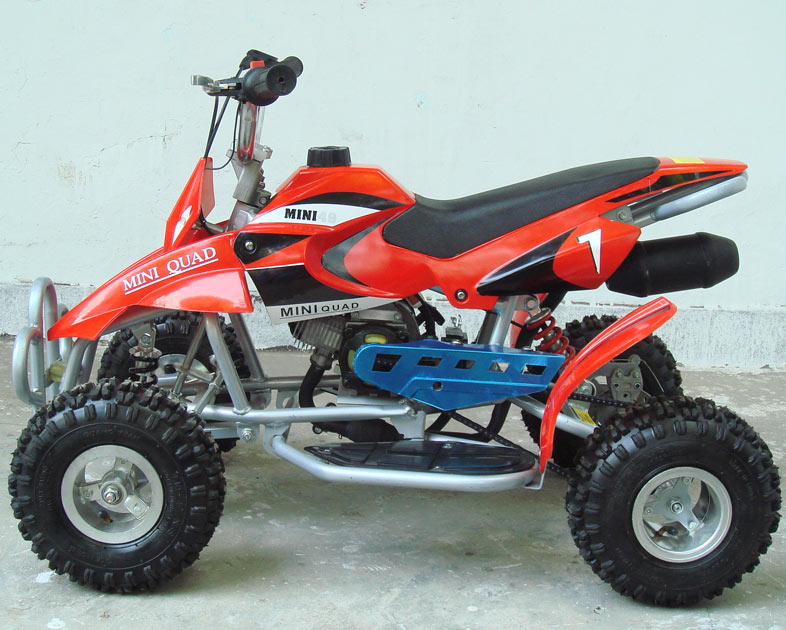

49cc ATV
ROKETA
ATV-49
Two stroke Mini Quad
| Colors
available |
Red
Blue
Black
Yellow |
| Decals |
|
| Tool kit |
|
| Assembly required |
Handlebar, front / rear fender
|
|
ENGINE
|
| Engine type |
2-Stroke,
signal cylinder |
| Displacement |
49cc |
| Cooling |
Air-cooled
|
| Max horsepower |
2.4hp / 7500rpm |
| Max torque |
2.0n.m / 6000rpm |
| Max speed |
31.1
mph |
| Climbing ability |
35 degree |
| Ignition |
C.D.I
|
| Starting system |
Pull
|
|
CHASSIS
|
| Clutch |
Automatic |
| Driveline |
Chain-drive |
| Driving wheel |
Rear wheel drive |
| Brakes,front/rear |
Disc |
| Brake operation |
Hand |
| Tires,front/rear |
3.00-4 |
| Fuel capacity/type |
0.2
gal |
| Weight,G.W./N.W |
68.3 /
61.7 lbs |
| Max load |
198.4 lbs |
|
DIMENSIONS
|
| Wheelbase |
20.8 inches |
| OA L*W*H |
37.7 * 23.8 * 25.5 inches |
| Height to seat |
2.2 inches |
Min ground clearance
|
3.1 inches |
| Carton size |
39.1 * 22.4 * 20.0 inches |
| Shipping info |
160pcs / 40HQ |
|
|
