ATV Key switch
ATV Ignition switch

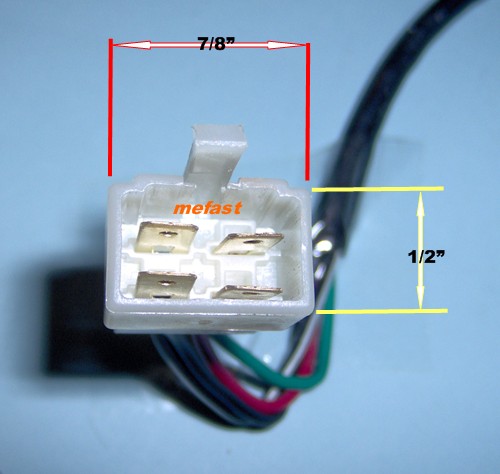

Connection information
4 Pin Female Molex Connector
Wire Color| Black w/white stripe |
|
|
Green |
||
| Black |
|
|
Red |
Continuity
On position Red and black 12V (off null)
Off position Black w/white stripe and green ground (on null)
On position Red and black 12V (off null)
Off position Black w/white stripe and green ground (on null)
