110 CC Head Diagram
Parts detail
 |

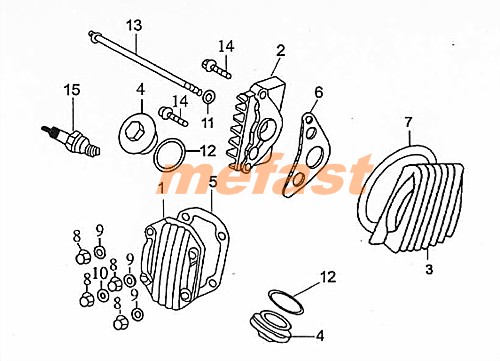

1 Cylinder head cover 2 Right head cover 3 Left head cover 4 Valve Cover 5 Head cover gasket 6 Right head cover gasket 7 Left cylinder cover gasket 8 Cap nut 9 Washer 10 Copper washer 11 Washer 12 Valve cover o-ring 13 Bolt 14 Bolt 15 Spark Plug NGK C7HSA |
 |
1 Cylinder head 2 Intake valve guide 3 Exhaust valve guide 4 Head gasket 5 Chain seal 8 Stud 9 Bolt 10 Sleeve 13 O-Ring 14 Seal |
 |

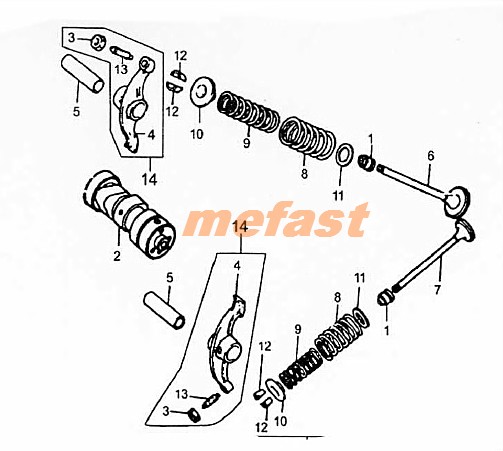

1 Valve seal 2 Cam shaft 3 Lock nut 4 Rocker arm 5 Rocker arm shaft 6 Intake valve 7 Exhaust valve 8 Outer valve spring 9 Inner valve spring 10 Spring seat upper 11 Spring seat outer 12 Split cone keeper 13 Adjuster 14 Rocker arm assembly Timing and marks |
