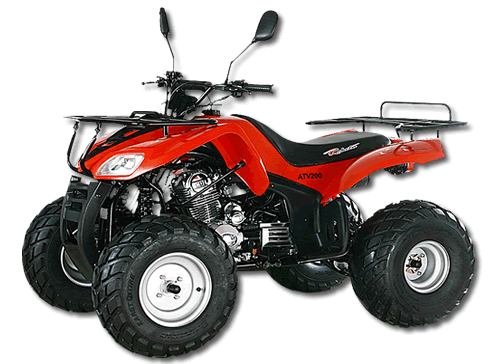

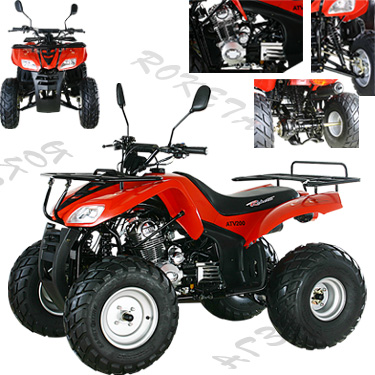

ATV-28 200cc
| ENGINE |
||
| 200cc
four cycle, air cooled single cylinder |
Max speed:>60km/h | |
| Rated Power and Rotate Speed:10.5KW/8000r/min | Max Torgue and Rotate Speed:13.0N.m/6500r/min | |
| Compressing Ratio:9.0:1 | ||
| DEMINSIONS |
||
| L63.5 X W41 X H44" | Distance between axles:43.31" | |
| 68.9x44.49x46.46" | Distance between front wheels:32.68" | |
| Gross weight:286.34 LBS | Ground
clearance 6" |
|
| Seat
height 32" |
||
| TIRES |
||
| Front:
22 X 7 - 10 |
Rear:
22 X 10 - 8 |
|
| STARTING |
||
| Electric
start |
||
| TRANSMISSION |
||
| Manual
Shift |
5
Speed with reverse |
|
| Shaft
drive |
||
| BRAKES |
||
| Front
: Drumb |
Rear :
Disk |
|
| SUSPENSION |
||
| Front : Dual A-arm | Rear : Mono-shock | |
| FUEL |
||
| Unleaded
Gasoline |
Fuel tank capacity : 7.5L | |
