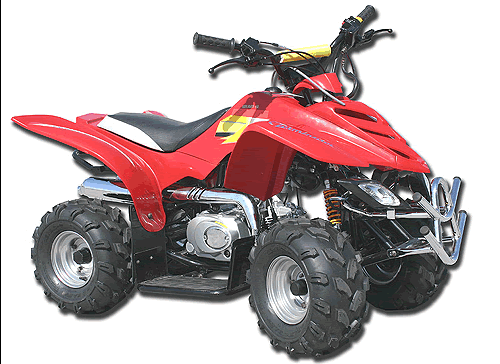

ATV-15 110cc
| ENGINE |
||
| 4-stroke,
air cooled single cylinder |
107 cc |
|
| Bore X stroke(mm): 52.4X49.5 | Compression ratio: 9.1:1 | |
| Maximum power(kw/r/min): 5.5/8000 | Maxmum torque(N.m/rpm): 6.5/5750 | |
| Lubrication:
auto- splash |
Starting:
electric |
|
| Engine oil capacity: 0.95L | Max.speed: 50km/h | |
| DEMINSIONS |
||
| L59.5xW34.5xH40"
1540X860X950mm |
Wheelbase: 1040mm | |
| Seat hight: 670mm | Ground
clearance: 100mm (3.5") |
|
| Dry weight: 130kg | Max. load: 95kg | |
| TRANSMISSION |
||
| 4
Speed Semiautomatic w/ reverse |
Shaft drive | |
| TIRES |
||
| Front: 19X7-8 | Tyre, rear: 18X9.5-8 | |
| BRAKES |
||
| Front:
Drumb |
Rear:
Drumb |
|
| Parking brake: Mechanical lock | ||
| ELECTRIC |
||
| Battery:12v-9ah | Ignition: C.D.I | |
| SUSPENSION |
||
| Front
A Arm Coil Spring |
Rear
Monoshock |
|
| Min.tuming radius: 2400mm | ||
| FUEL |
||
| Unleaded
Gasoline |
Fuel tank capacity: 7.8L | |
| 40 Ft Container 66 units |
| ATV-15A | ||
| 110cc |
Chain Drive |
