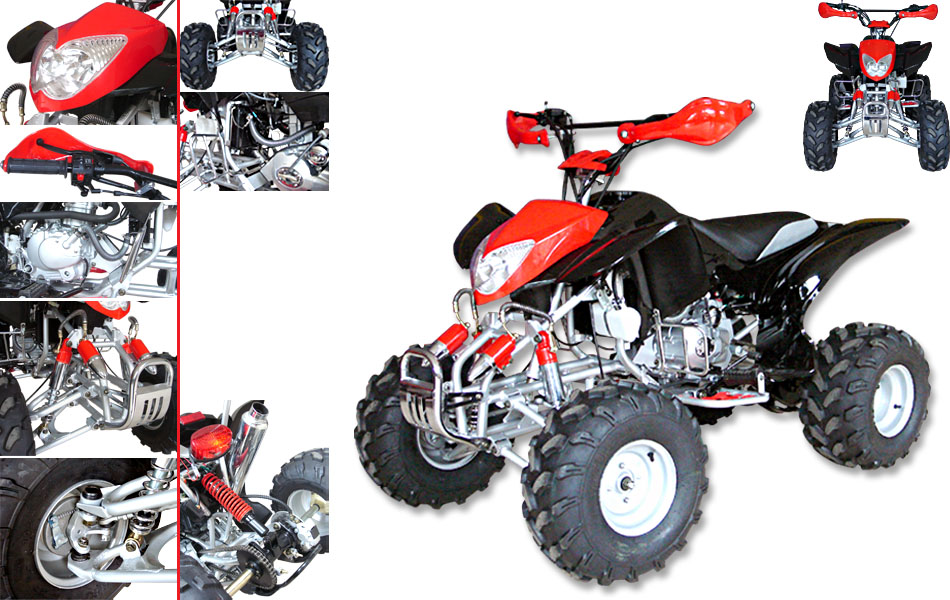

ATV-04
(RTK-250W)(250cc water-cool) (14.75HP)
| DIMENSIONS |
||
| LengthxWidthxHeight(mm):1850x1140x1080 | Wheel Base(mm):1110 | |
| Mini Ground Clearance (mm):150 | Loading Capacity(kg):150 | |
| Dry Weight(Kg):150 | Parking Dimension(mm):1485x835x770 | |
| ENGINE |
||
| Single Cylinder; water-cooled four stroke | Start Mode:Electric | |
| Power (Kw/r/min):10.0/7500r/min | Max Torque (N.m/r/min):13.5/6500r/min | |
| Cylinder Diameter*Journey(mm):63.5x62.2 | Displacement (ml):250 | |
| Engine Oil (L):1 | Lubrication:Press Splash | |
| Compression Proportion:9.2:1 | ||
| TIRES |
||
| Front:19x7-8 | Rear:18x9.5-8 | |
| TRANSMISSION |
||
| Chain Drive |
4 Speed with
Reverse |
|
| Manual Clutch |
||
| ELECTRIC |
||
| Battery Specification:12V9Ah | Ignition CDI |
|
| SUSPENSION |
||
| Front Hanging:Double Swing Arm | Rear Hanging:Integral | |
| Mini Turning radium(mm):2400 | ||
| BREAKS |
||
| Front: Drumb |
Rear: Disk |
|
| Parking Trig: Mechanical Lock | ||
| FUEL |
||
| Unleaded
Gasoline |
Tank Capacity(L):4 | |
| 40' Container 64 units |
