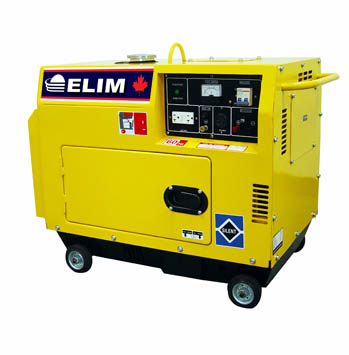

| Model Name |
ELM5000S (LDG5000S) |
|
Generator |
Type |
Brush, Self-excited, 2 poles, Single Phase |
Voltage Regulator |
Automatic Voltage Regulator (AVR) |
Frequency |
60 hz |
|
Max. AC Output |
4.6 KW (4.6 KVA) |
Rated AC Output |
4.2 KW (4.2 KVA) |
Rated of amps |
35@120V, 17.5@240V, 8.3@12V |
|
Engine |
Engine Type |
Single Cylinder, Vertical, Air-cooled, 4 stroke, Direct Injection Diesel |
|
Displacement |
406 cc |
|
Max. Output |
10HP/3600rpm
|
|
Fuel |
Diesel |
|
Fuel Tank Capacity |
3.87Gal (15 L) |
|
Continuous Operation Hours |
6.6 hours |
|
Ignition System |
TCI
|
|
Starting System |
Electric Start |
|
Operating Noise Level (7m) |
70 dB(A) |
|
Feature |
Standard Features |
Silent Engine (Minimal Vibration, Smooth running) 12V, Low Oil Shut Off |
|
Dimension |
Net Weight |
363.0 lbs (165 kg) |
Gross Weight |
376.5 lbs (171 kg)
|
Product Dimension |
36.0 x 21.3 x 29.1 inch (915 x 540 x 740 mm) |
Carton Dimension |
37.6 x 22.6 x 31.2 inch (955 x 575 x 795 mm) |

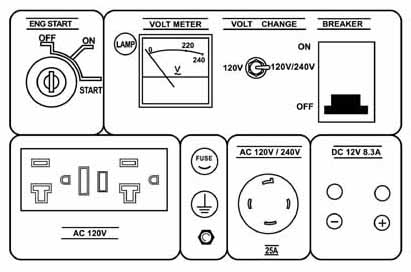

Outlet Diagrams |
|
