CANADA WHOLESALE DIESEL GENERATOR
 |

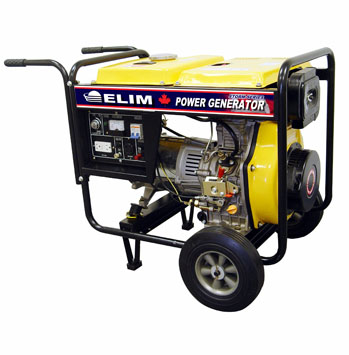

LDG5000CLE 4600 WATT DIESEL GENERATOR  ISO 9001:2000 Certified CANADA ONLY |
| Model Name | ELM5000CLE (LDG5000CLE) | |
|
Generator |
Type |
Brushless, Self-excited, 2 poles, Synchronous, Single Phase |
Voltage Regulator |
Capacitor | |
Frequency |
60 hz | |
|
Max. AC Output |
5.0 KW (5.0 KVA) |
|
Rated AC Output |
4.6 KW (4.6 KVA) |
|
Rated of amps |
38.3@120V, 19.2@240V, 8.3@12V | |
|
Engine |
Engine Type |
Single Cylinder, Vertical, Air-cooled, 4 stroke, Direct Injection Diesel |
|
Displacement |
406 cc |
|
|
Max. Output |
10HP/3600rpm |
|
|
Fuel |
Diesel |
|
|
Fuel Tank Capacity |
3.3Gal (12.5 L) |
|
|
Continuous Operation Hours |
5.5 hours |
|
|
Ignition System |
TCI |
|
|
Starting System |
Recoil + Electric Start |
|
|
Operating Noise Level (7m) |
85 dB(A) |
|
|
Feature |
Standard Features |
12V, Low Oil Shut Off, Wheel Kit and Handle Bar |
|
Dimension |
Net Weight |
209.4 lbs (95 kg) |
Gross Weight |
220.5 lbs (100 kg) |
|
Product Dimension |
30.1 x 19.7 x 27.6 inch (765 x 500 x 700 mm) | |
Carton Dimension |
30.6 x 20.2 x 28.1 inch (777.2 x 513.1 x 713.7 mm) |
|

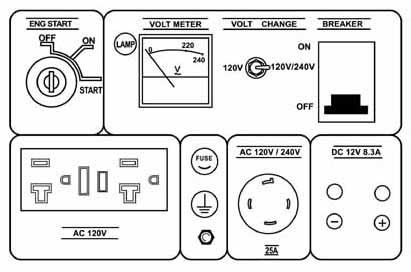

Outlet Diagrams |
 | |
