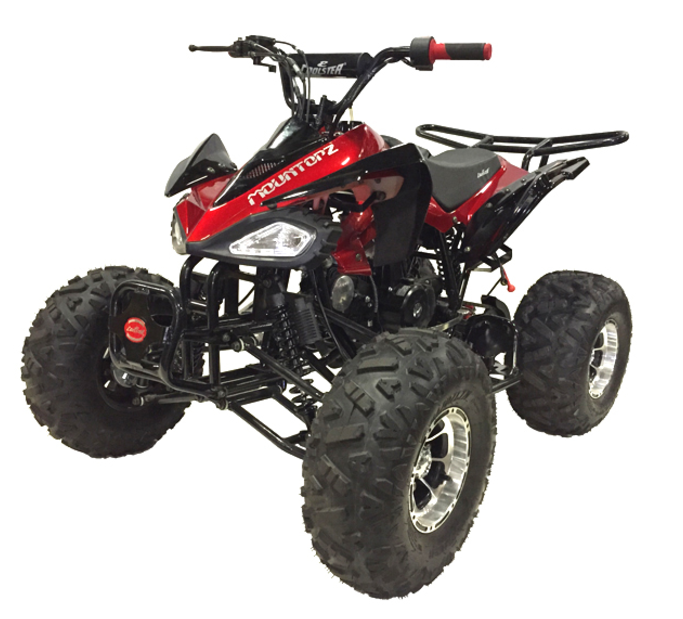

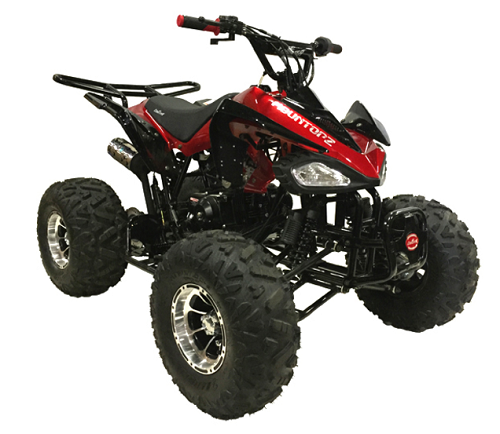

125cc 3125CX-3 Sport ATV

Model Number:

 ATV-3125CX3

Engine Type:

 125CC Single cylinder, 4-stroke, air-cooled

Max Torque:

 8.0N.m/5500r/min

Max Horsepower:

 5.7KW/7500r/min

Bore Stroke:

 52.4x49.5mm

Ignition:

 CDI

Starting System:

 Electric

Battery:

 12V, 5Ah

Clutch:

 Automatic

Transmission:

 Automatic F/R

Brakes Front/Rear:

 Hub/hydraulic disc

Tires Front/Rear:

 19 x 7.00 - 8 / 18 x 9.50 - 8

Fuel Capacity/Oil Type:

 90#/2.4L

Weight:

 G.W./N.W :118KG /98KG

Wheelbase:

 855mm

Dimensions:

 1,465 x 920x 925mm

Height to Seat:

 620mm

Min. Ground Clearance:

 140mm

Rims:

 Aluminium
