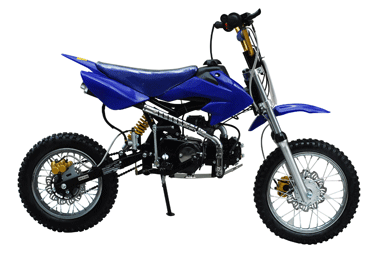

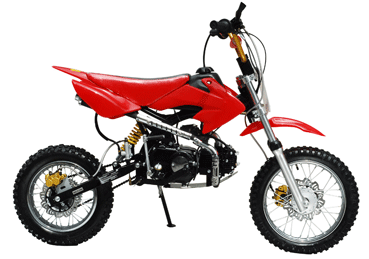

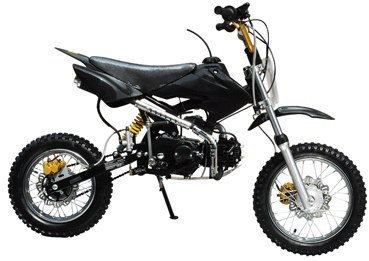

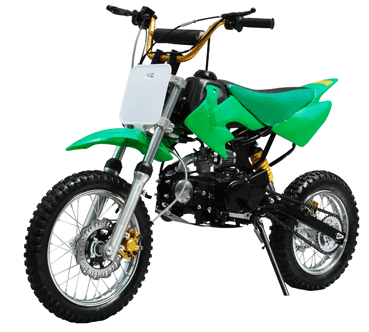

ATD-125C
| Engine: |
|
| Engine
Type: |
125CC,Air cooled, 4-stroke,
1-cylinder,Manual transmission |
| Start Type: |
Foot start |
| Transmission: |
Chain Drive |
| Engine Gear: |
4-3-2-N-1 |
| Shift Gear: |
Foot |
| Wheelbase(inch): |
43.31 |
| Ignition: |
CDI |
| Fuel Capacity(L): |
2.5 |
| Chassis: |
|
| Front Brake: |
Hydraulic Disc |
| Rear Brake: |
Hydraulic Disc |
| Tire Front: |
2.5-14 |
| Tire Rear: |
3.0-12 |
| Suspension Front(inch): |
26.6 |
| Suspension Rear(inch): |
9.65 |
| Dimension: |
|
| G.W.(lbs): |
110 |
| N.W.(lbs): |
89 |
| Max Loading(lbs): |
155 |
| Overall Size(inch): |
62.6x29.53x41.34 |
| Carton Size(inch): |
52.95x15.16x30.15 |
| Seat Height(inch): |
30.71 |
| Ground Clearance(inch): |
12.2 |
|
