SXR 50 49.7cc Scooter

Specification

Fully Assembled (Installation require on some bolt-on items)

Engine:  Air cooled, Single cylinder,4 Stroke, Horizontal type

Engine Type (ml):  49.7

Starter:  Electric / Kick

Battery Type:  Lead Acid

Gear:  CVT Auto

Transmission:  Belt Drive

Ignition:  C.D.I

Max Power:  3.26

Max Torque:  3.0

Cooling System:  Air-Cooled

Controls:  Head Light, Passing Light, Turn Signal Light,
Electric Start,
Emergency Flash, Horn

Lighting:  Head Light, Passing Light, Turn Signal Light,
Emergency Flasher

Fuel Capacity (Gal):  1.6

Consumption:  Est 100+

Frame:  High Strength Steel

Ground Clearance (inch):  7.48

Wheelbase (inch):  55.91

Brakes Front:  Disc Brake

Brakes Rear:  Drum Brake

Tires Front:  120/70-12

Tires Rear:  130/70-12

Front Suspension:  Light weight conventional fork

Rear Suspension:  Coil Over Shock

N.W. (lbs):  207

G.W. (lbs):  253

Overall Length (inch):  74.02

Overall Width (inch):  34.25

Overall Height (inch):  45.67

Seat Height: (inch):  28.5







SXR 50 49.7cc Scooter Blue Left side view

SXR 50 49.7cc Scooter Red Left side view

SXR 50 49.7cc Scooter White Left side view
SXR 50 49.7cc Scooter Black Left side view
Left Side SXR 50 49.7cc Scooter Blue
Right Side SXR 50 49.7cc Scooter Blue

SXR 50 49.7cc Scooter Risht side view Blue


SXR 50 49.7cc Scooter Right Rear view Blue


SXR 50 49.7cc Scooter Tail Light


SXR 50 49.7cc Scooter Exhaust
Monoshock SXR 50 49.7cc Scooter Red

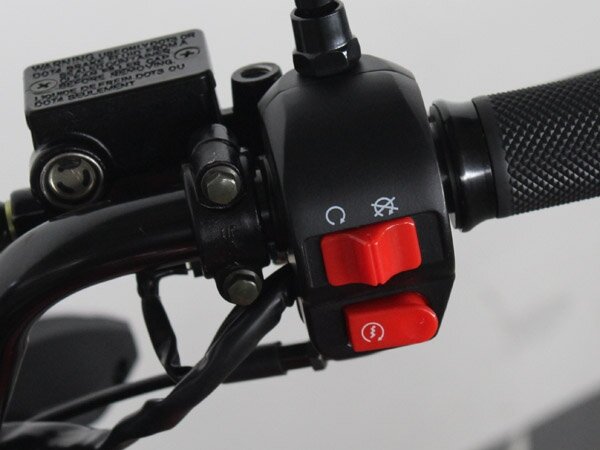

Left Handlebar Control Horn , Lights

SXR 50 Right Handlebar switch On Off Start
SXR 50 Speedometer Display

Rear wheel SXR 50 49.7cc Scooter

Handle bar and speedometer SXR 50 49.7cc Scooter Red
