Force 125 ,125cc ATV




Item No    FORCE 125
ENGINE Type:    120cc, Air cooled, 4-stroke, 1-cylinder
Bore×Stroke:    φ52.4*55.5mm
Compression Ratio:    9.5:1
Carburetor:    PZ22
Ignition:    CDI
Starting:    Electrical start
Transmission:    F-N-R
Drive Train:    Chain drive
Max. Power:    5.3kw/7500r/min
Max. Torque:    8.0Nm/6500r/min
Suspension/Front:    Independent double shock absorber
Suspension/Rear:    Single shock absorber
Brakes/Front:    Drum
Brakes/Rear:    Ventilated Hydraulic disc
Tires/Front:    19×7-8
Tires/Rear:    18×9.5-8
Overall Size (L*W*H)    1320*900*940mm
Seat Height:    680mm
Max. Speed:    55km/h
Battery:    12V4Ah
Fuel Capacity:    3.5L
Dry Weight:    94kg
Max. Load:    90kg
Package Size:    1300×770×620mm
Loading Quantity:    36pcs/20´GP, 108pcs/40´HQ


Mefast Wholesale
Force 125 125cc ATV Left front view

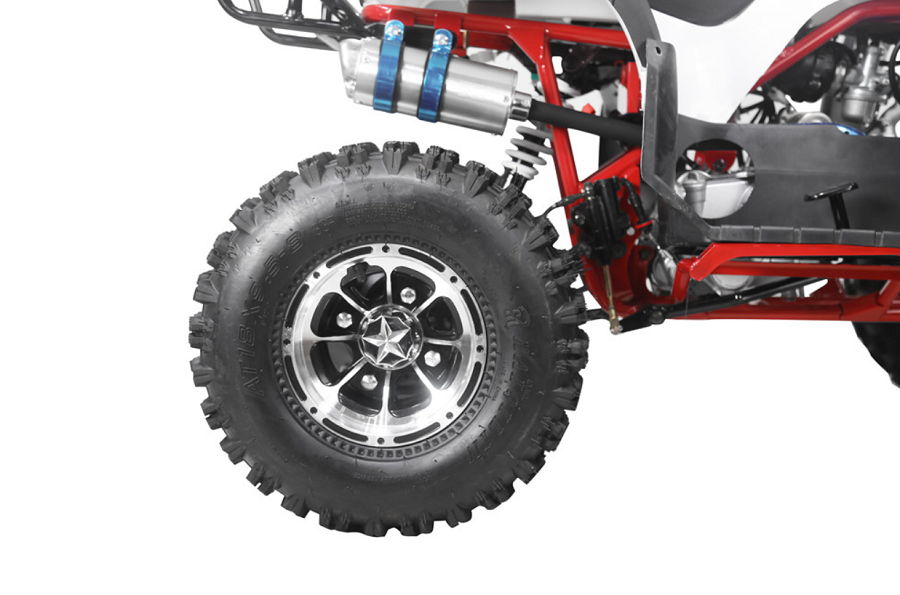

Force 125 125cc ATV Exhaust

Force 125 125cc ATV Right side view
Force 125 125cc ATV Left Side Viwe

Force 125 125cc ATV Front view

Force 125 125cc ATV Rear right view
