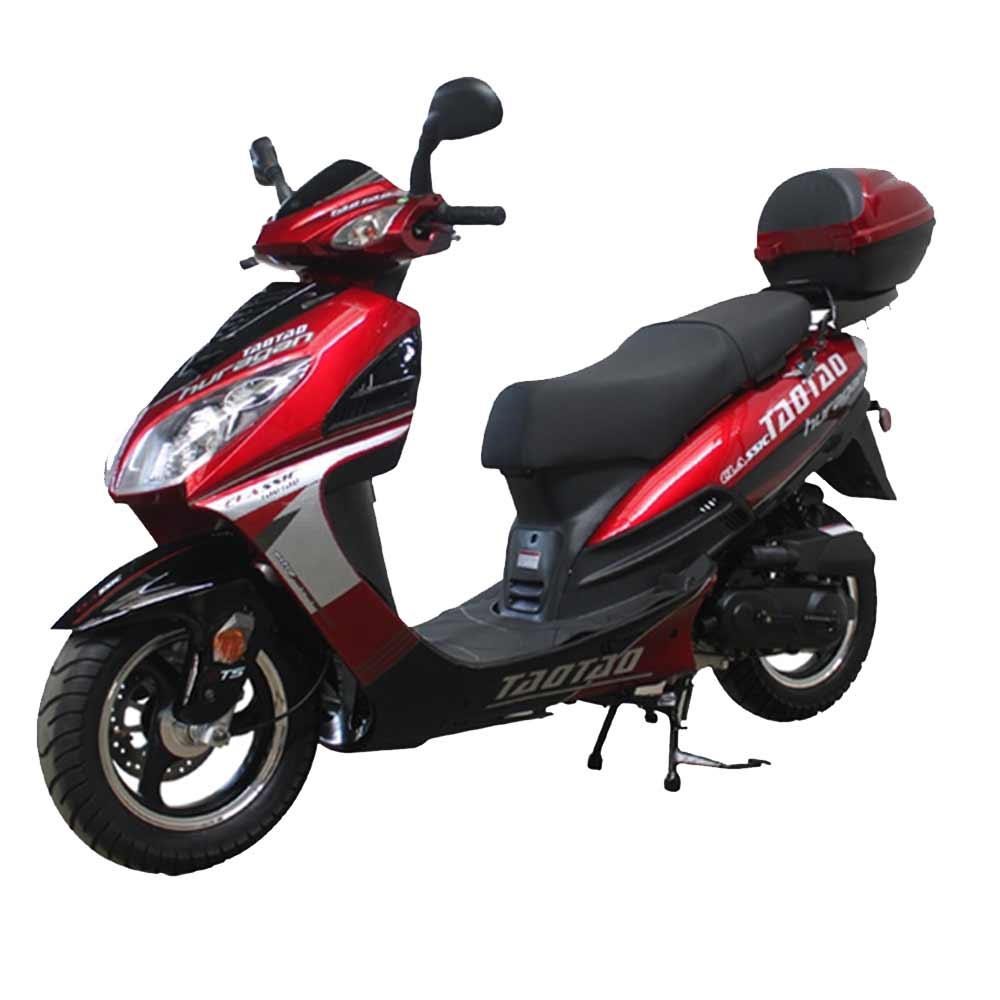

EVO50 Full Size 50cc Scooter





EVO 50
Engine Type: 1P39QMB Single-cylinder, 4-Stroke, Air-cooled
Displacement: 49.6 cc
Bore x Stroke: (mm) 39x41.5 mm
Compression Ratio: 10.4:1
Max Torque: 3.0/4000+/-500 n.m (r/min)
Carburetor: PD19J
Starting system: Electric / Kick
Ignition: C.D.I
Transmission: Automatic CVT with V-Belt
Spark Plug Type / Gap(mm): A7RTC / 0.6~0.7
Battery Type: 12V 7Ah
Fuel Efficiency: 115 MPG (approx.)
Fuel Capacity: 1.3 Gallon (5.0 L)
Tires (front/rear) | Rim: 120/70-12 / 120/70-12
Wheels: 2.5x12 Alloy Rims
Brakes (front/rear): Hydraulic Disc / Drum
Max Speed: 31 mph (50 km/h)
Wheel Base: 54 inches (1370mm)
Ground Clearance: 4.33 inches (110mm)
Seat Height (inches): 27 (730mm)
Net Weight: 224 lbs. (102 Kgs)
Gross Weight: 268 lbs. (122 Kgs)
Dimensions (LxWxH): TBD
Shipping Dimensions (LxWxH): 73x22x32 inches
CARB Approved
