EGL A16 RS 250 L

250cc Dirt Bike


SPECIFICATONS

POWER

Engine Type    CB NC250-F, Single Cylinder, 4-Stroke, Air Cooling, SOHC

Displacement    249.9 ml

Max Power    14kw / 8500rpm - 19 Hp

Max Torque    18/6500 N.m/r/min

Compression Ratio    9.25:1

Shift Type    Manual Wet Multi-Plate, Constant mesh, two stage transmission, 5-Gears

Start Type    Electric & Kick Start

Carburetor    PE30

Ignition     Digital CDI

Drive Train    #520 Chain, FT: 13T/RR: 49T Sprocket

PERFORMANCE

Front Fork    Φ54*Φ60-940mm Inverted Hydraulic Dual Adjustable Forks,265mm Travel

Rear Shock    465mm Dual Adjustable Shock with Ballonet, 120mm Travel

Front Wheel    7116 Aluminum Rim, Gravity Cast Hub, FT: 1.6 x 21

Rear Wheel    7116 Aluminum Rim, Gravity Cast Hub, RR: 2.15 x 18

Front Tires    80/100-21

Rear Tires    110/100-18

Front Brake    Dual Piston Caliper, 270mm Disc

Rear Brake    Single Piston Caliper, 240mm Disc

DETAILS

Frame    Central Tube High Strength Steel Frame

Swing-Arm    Forged Aluminum Swingarm

Handle Bar    Tapered Aluminum  #7075

Overall Size    2180*830*1265mm

Packing Size    1715x460x860mm

Wheel Base    1495 mm

Seat Height    950 mm

Ground Clearance    300 mm

Fuel Capacity    12 L / 3.1 Gal.

N.W    115KG

G.W    145KG

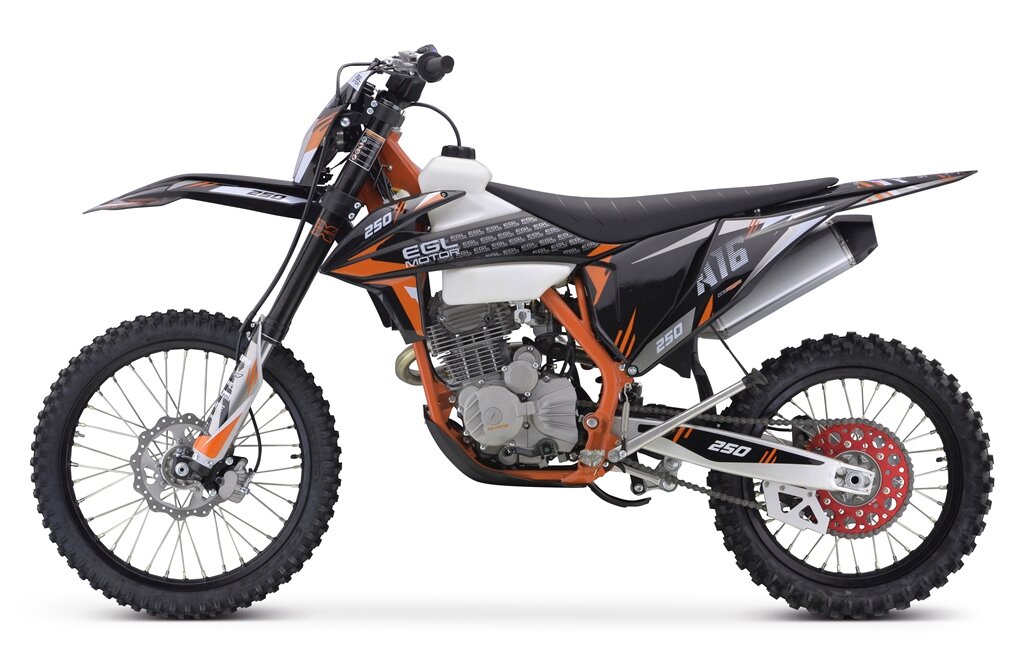

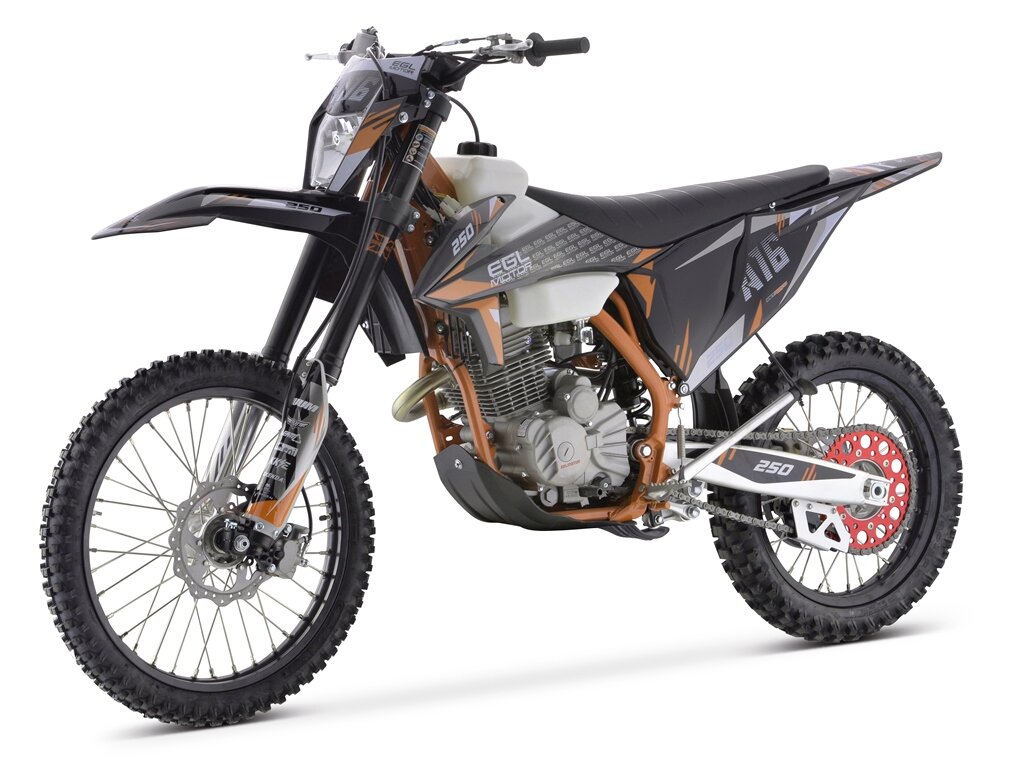

EGL A16 RS 250 L 250cc Dirt Bike orange left side view

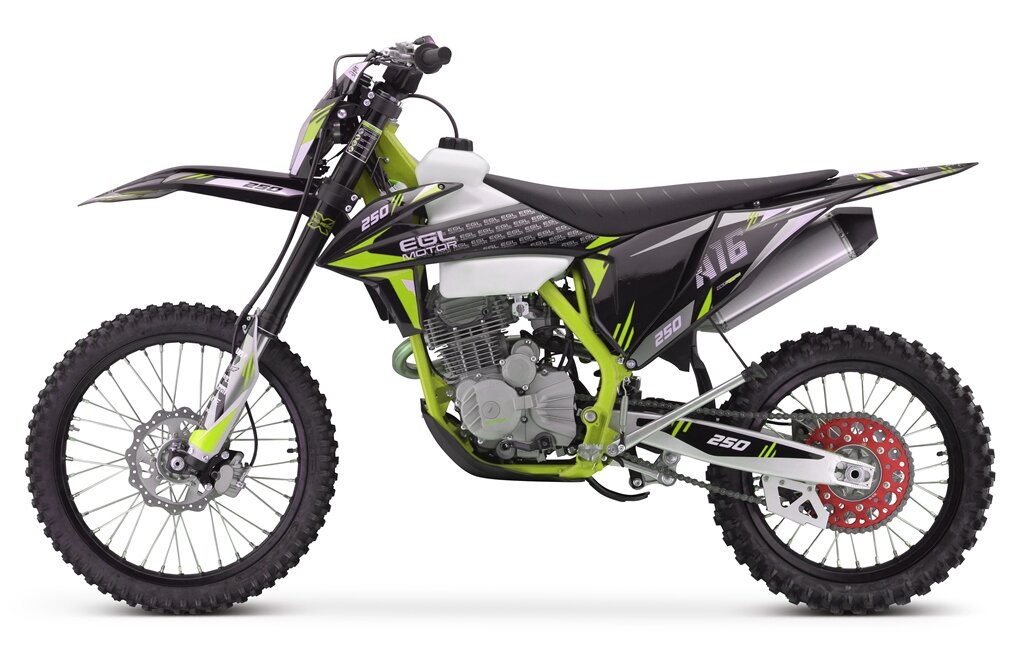

EGL A16 RS 250 L 250cc Dirt Bike Green Left side view

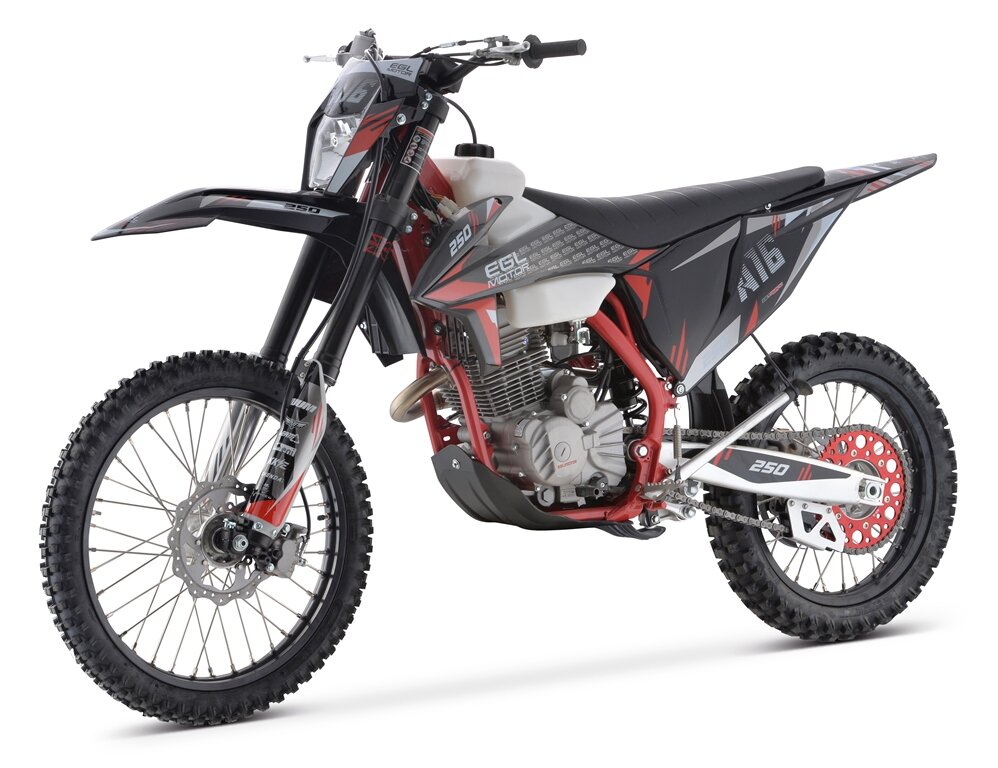

EGL A16 RS 250 L 250cc Dirt Bike Red Left Side

EGL A16 RS 250 L 250cc Dirt Bike Right side Orange

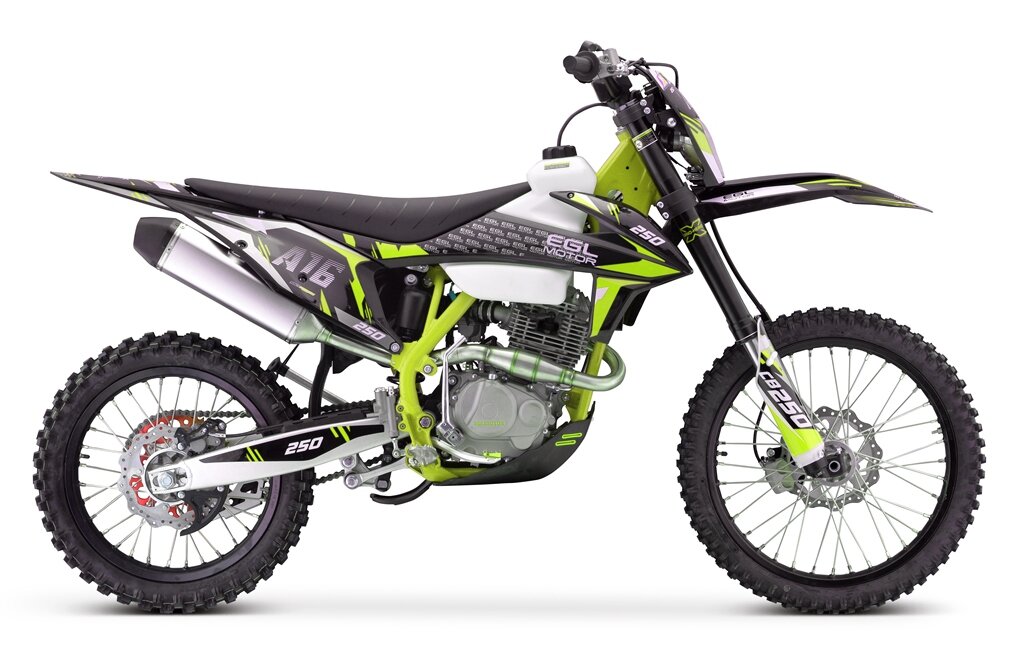

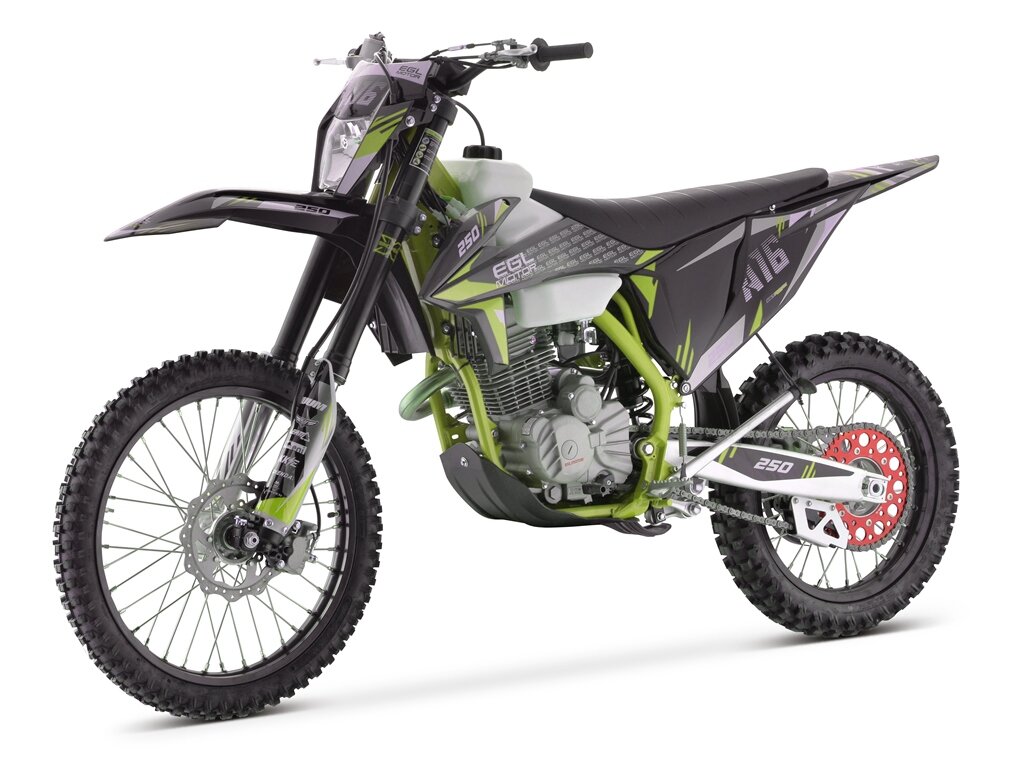

EGL A16 RS 250 L 250cc Dirt Bike Right Side Green

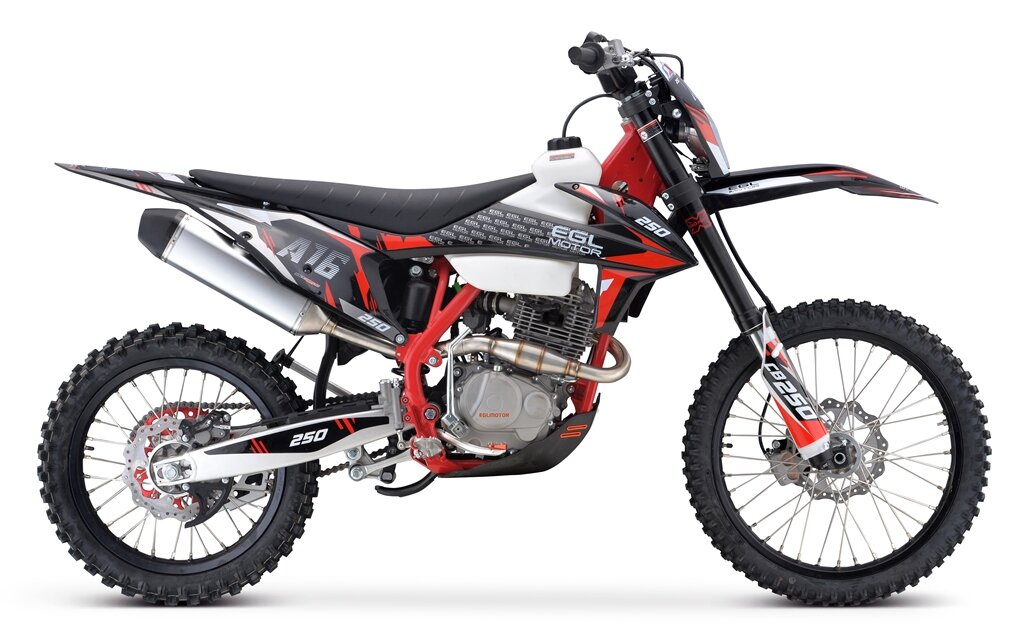

EGL A16 RS 250 L 250cc Dirt Bike red right view

Orange Right side EGL A16 RS 250 L 250cc Dirt Bike
Mefast Wholesale

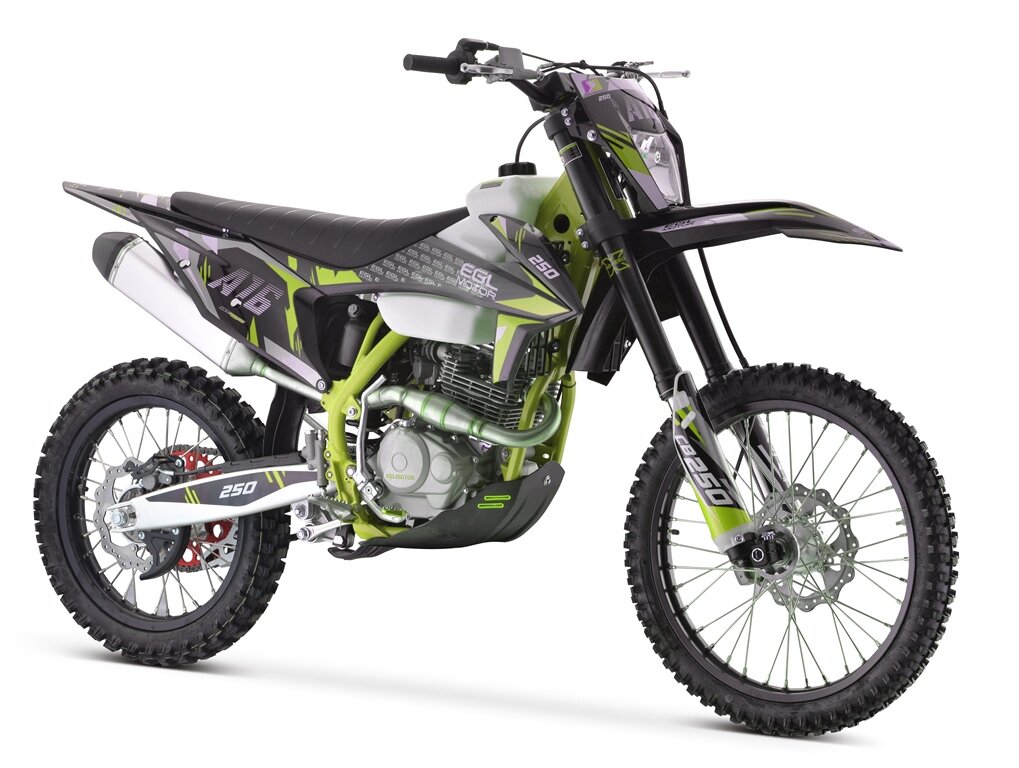

Right side view EGL A16 RS 250 L 250cc Dirt Bike Green

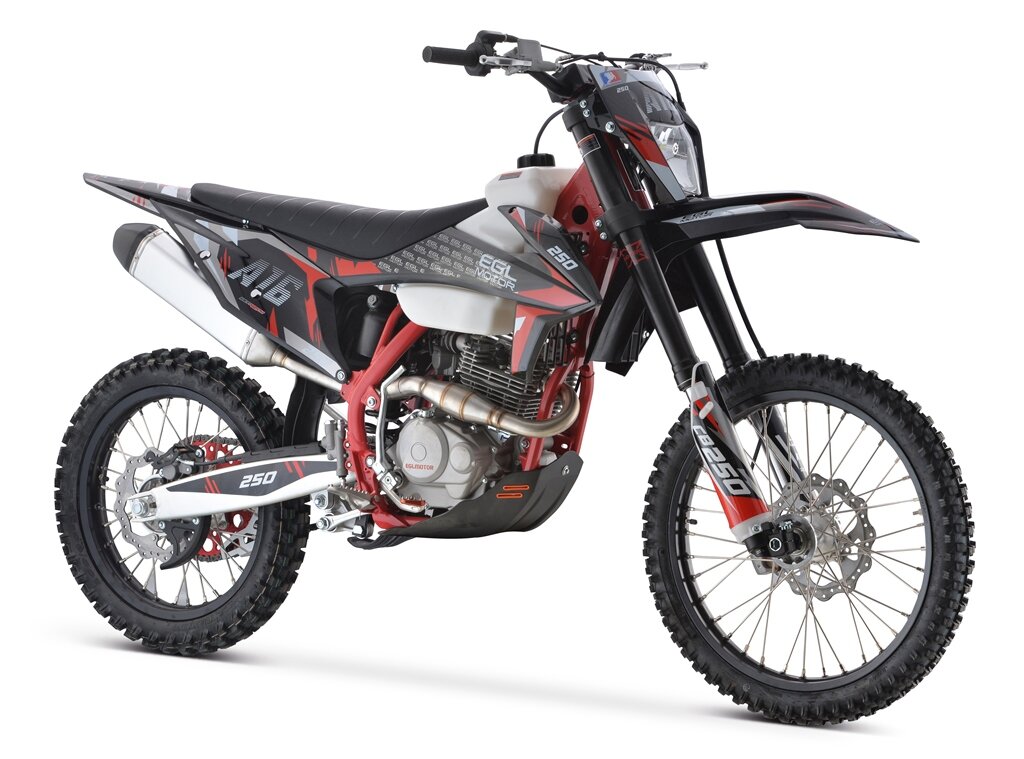

250cc Dirt bike EGL A16 RS 250 L 250cc red

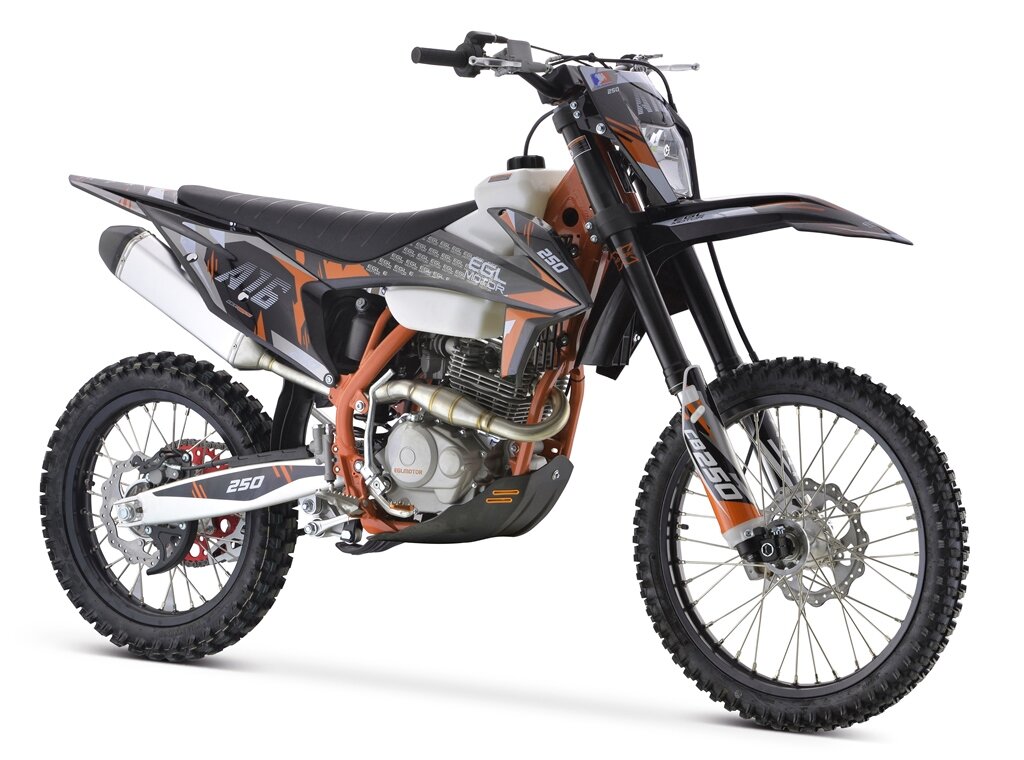

250cc Dirt bike EGL A16 RS 250 L 250cc left view orange

Dirt bike 250cc EGL A16 RS 250 L Green left side view

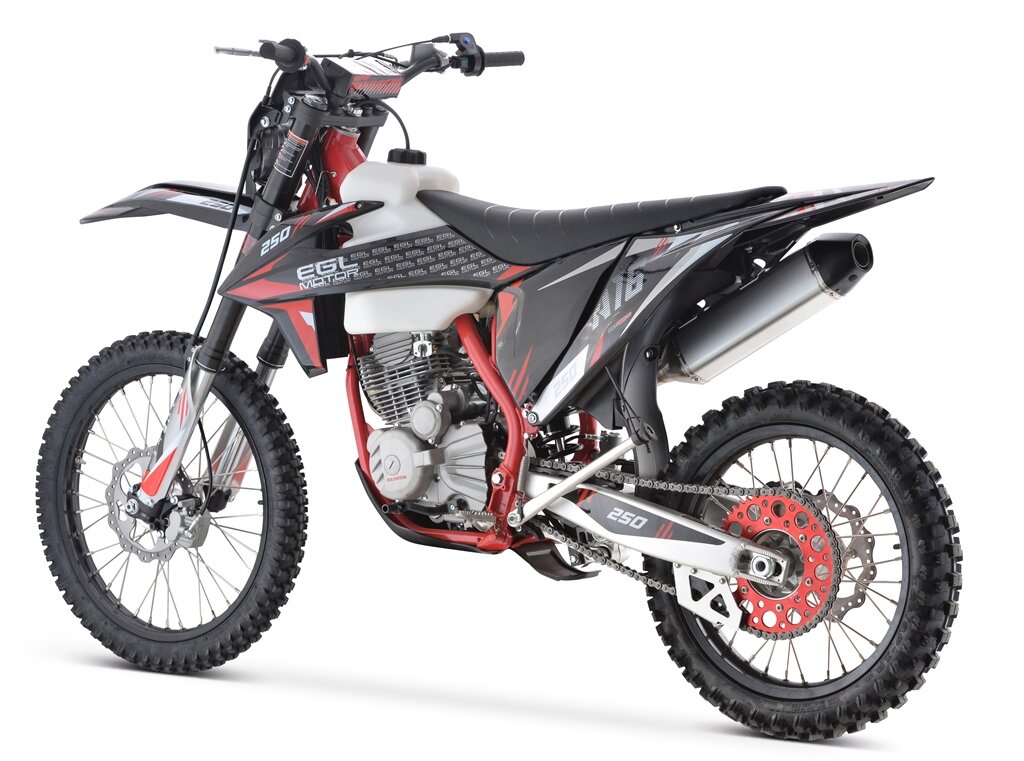

Dirt bike 250cc EGL A16 RS 250 L red left side

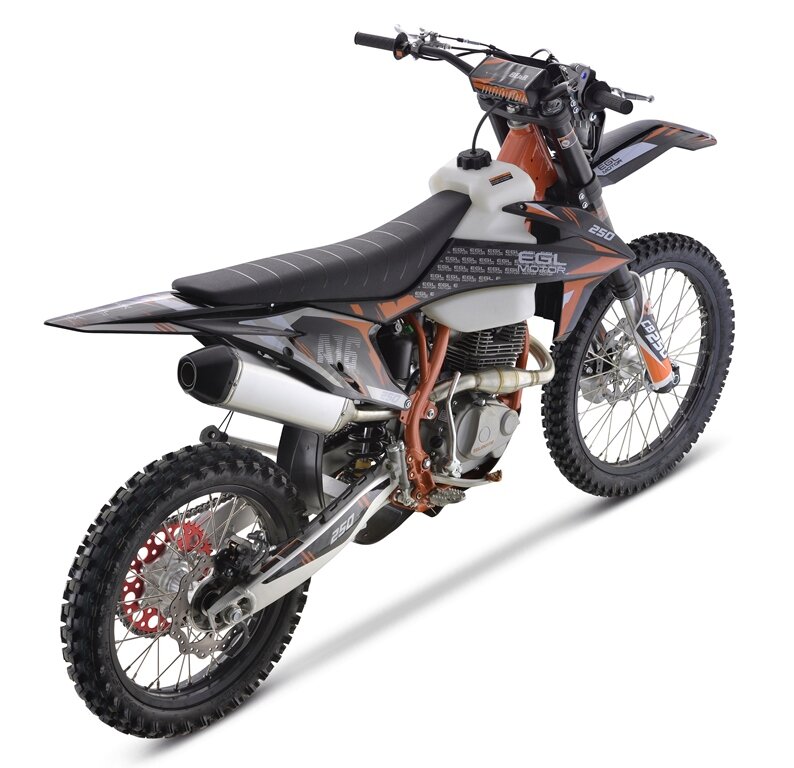

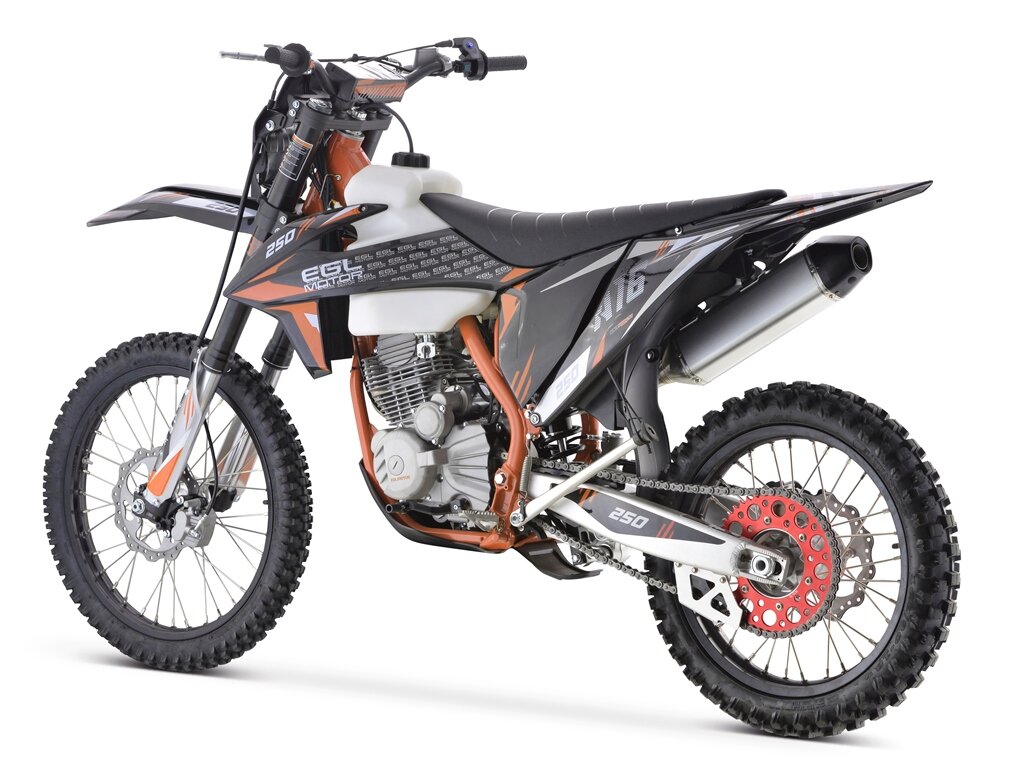

250cc Dirt bike EGL A16 RS 250 L left rear view orange

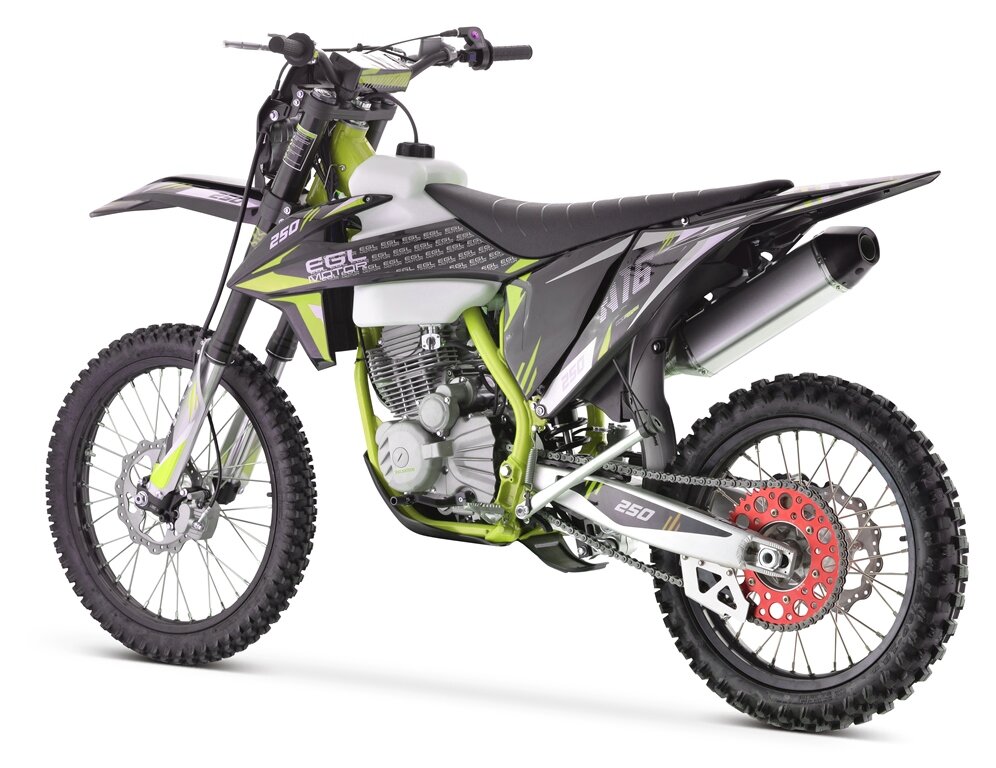

EGL A16 RS 250 L 250cc Dirt Bikerear left view green

EGL A16 RS 250 L 250cc Dirt Bike Top view red

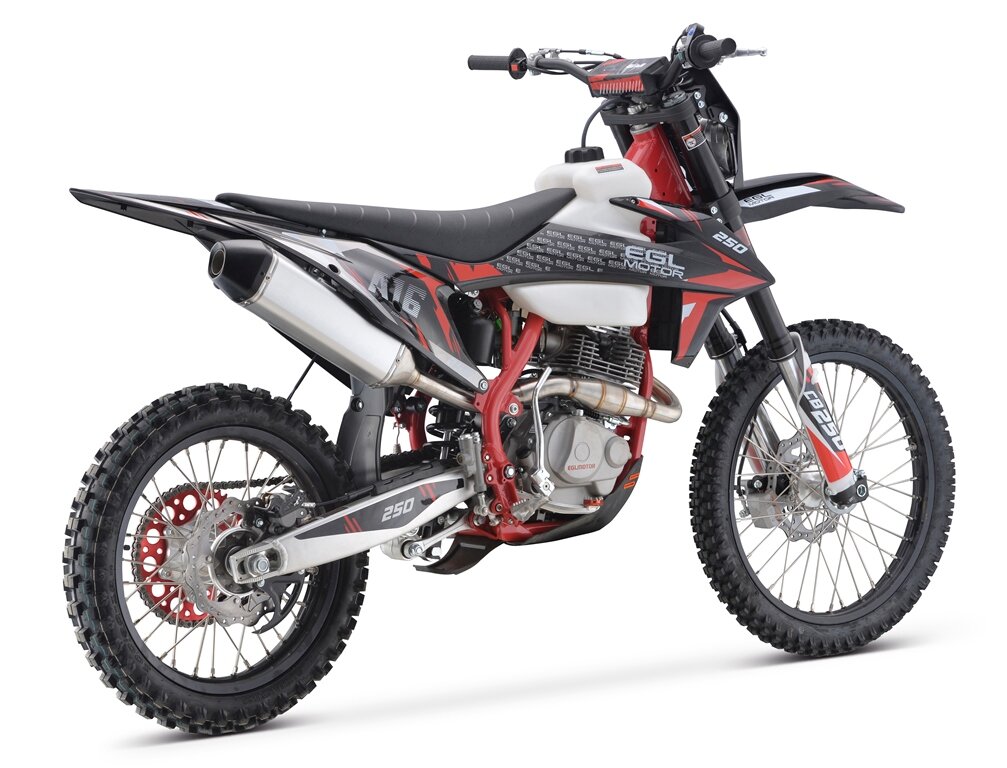

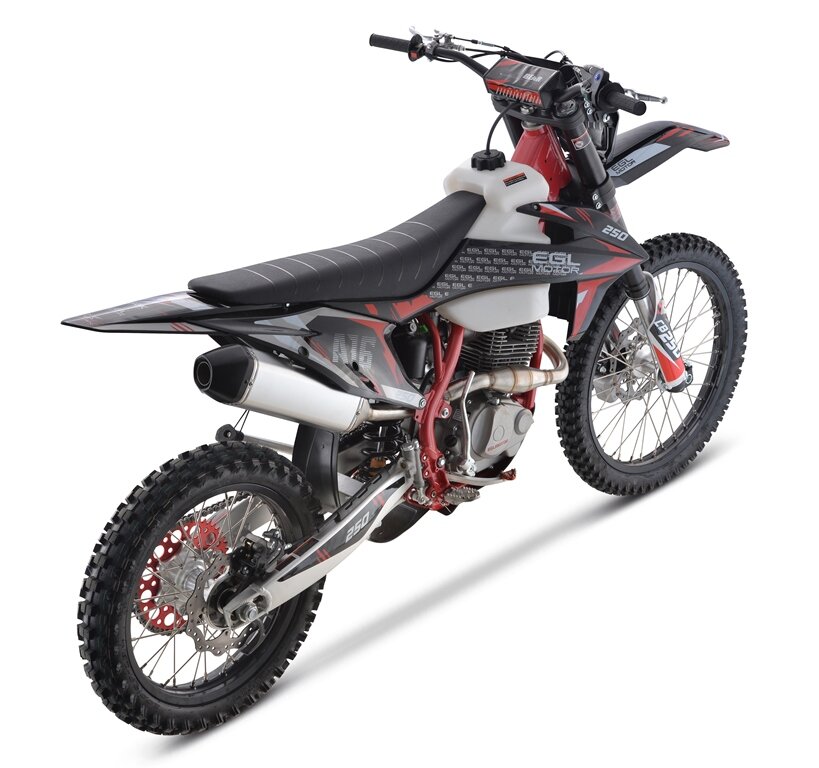

EGL A16 RS 250 L 250cc Dirt Bike Right rear view red

EGL A16 RS 250 L 250cc Dirt Bike Orange Right rear view

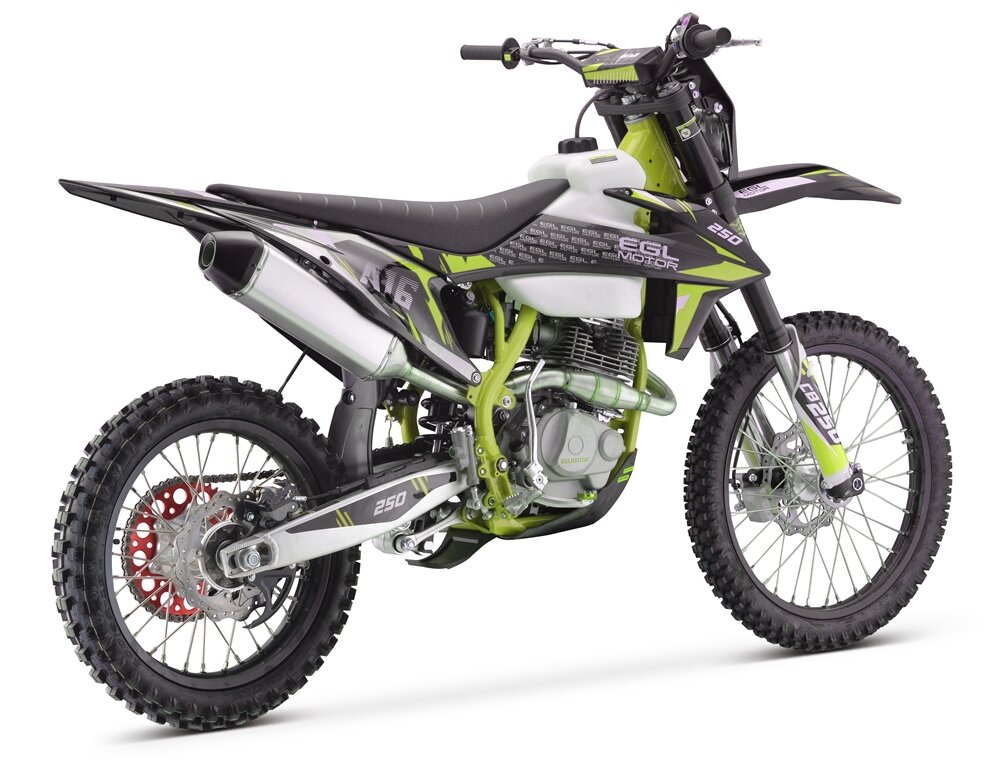

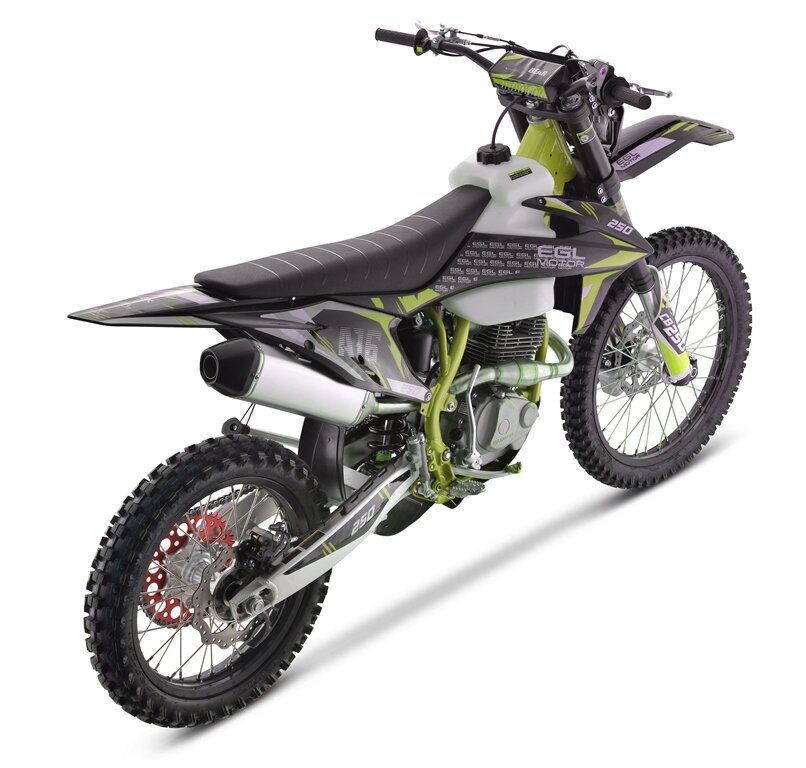

250cc Dirt bike Green rear view EGL A16 RS 250 L
