EGL A10 PRO 125 , 125cc Dirt Bike


EGL A10 PRO 125 , 125cc Dirt Bike Green
SPECS:

Engine type:  125cc, Zongshen brand, single cylinder, 4 stroke, air cooled, manual clutch, kick start, N-1-2-3-4 Gear

Bore x StrokeZ;  52.4*55.5

CompressionZ;  9.6:1

Max.powerZ;  5.3/7000

Max.torque:  8.5/5000

Ignition mode:  CDI

Carburetor:  PZ26

Sprocket:  front: 428-14, rear: 428-41

Frame:  Steel

Suspension system:  front: 735mm; rear: 290mm

Brake system: front and rear all disc brakes, φ190mm disc

Handle bar:  Steel

Rim Size:  Steel, front: 1.4-14; rear:1.85-12

Tire Size:  front:60/100-14; rear:80/100-12

Max. loading:  65kg

Tank Capacity:  4.5L

Seat Height:  790mm

Wheel Base:  1220±3mm

Ground Clearance:  350mm

Dimensions (L*W*H):  1680mm*760mm*985mm

G.W/N.W:  65kg/75kg

Package size:  1500*430*770mm

FCL QTY:  40HQ: 114pcs

EGL A10 PRO 125 , 125cc Dirt Bike

Mefast Wholesale

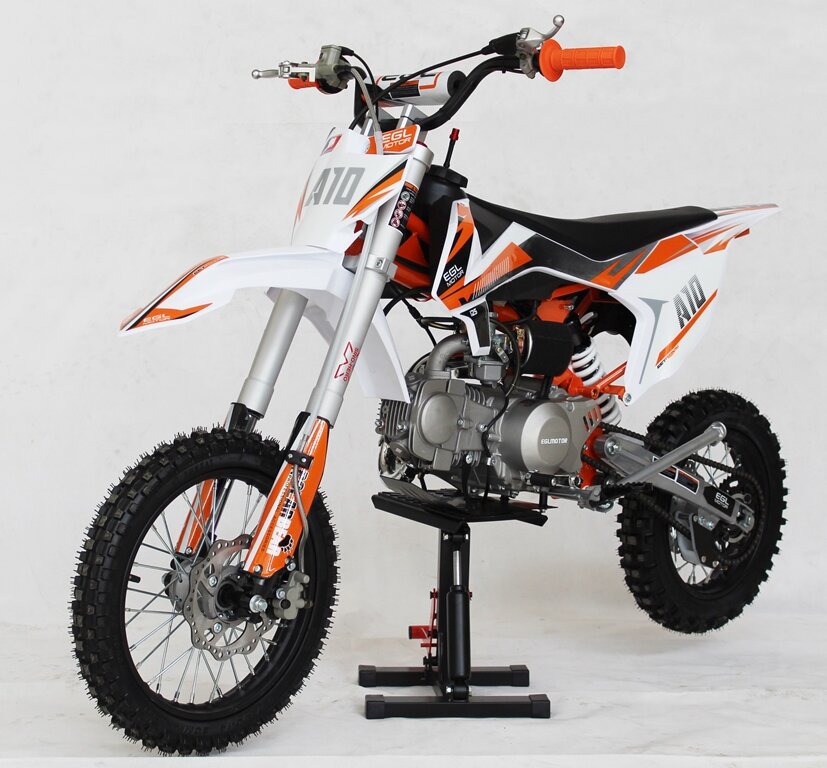

EGL A10 PRO 125 , 125cc Dirt Bike, left front view orange

EGL A10 PRO 125 , 125cc Dirt Bike Front right view orange

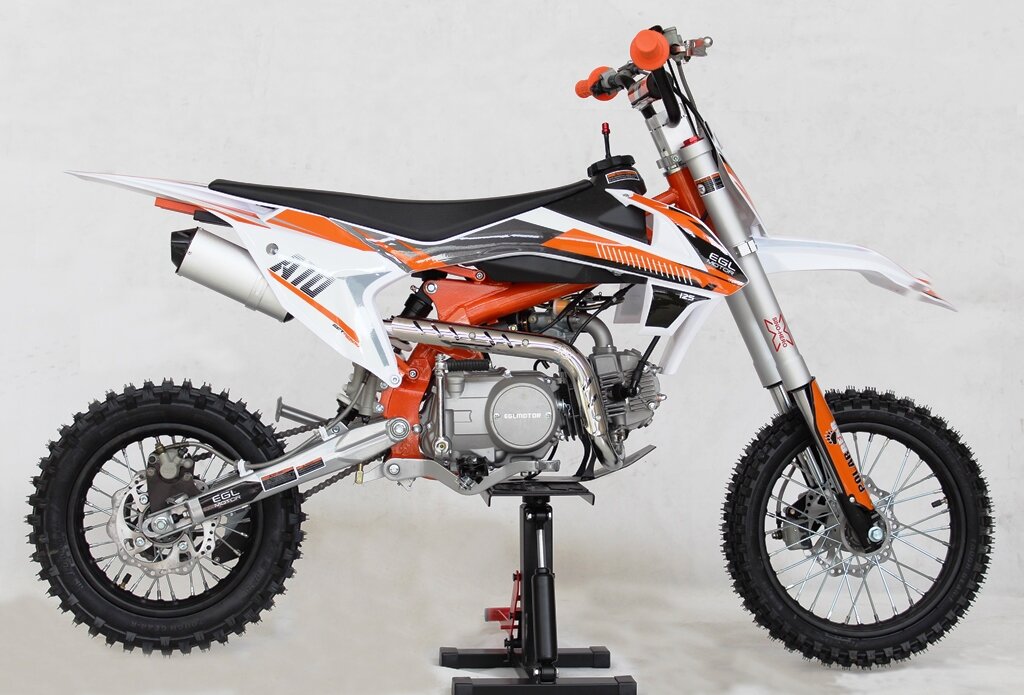

EGL A10 PRO 125 , 125cc Dirt Bike Orange Left side view

EGL A10 PRO 125 , 125cc Dirt Bike Front view orange

EGL A10 PRO 125 , 125cc Dirt Bike Right side view Orange

EGL A10 PRO 125 , 125cc Dirt Bike Rear right side view orange

EGL A10 PRO 125 , 125cc Dirt Bike Rear view orange

EGL A10 PRO 125 , 125cc Dirt Bike rear left side view orange

EGL A10 PRO 125 , 125cc Dirt Bike fuel tank

EGL A10 PRO 125 , 125cc Dirt Bike left side view engine
EGL A10 PRO 125 , 125cc Dirt Bike Left front view Green

EGL A10 PRO 125 , 125cc Dirt Bike right front view green

EGL A10 PRO 125 , 125cc Dirt Bike Left side view green

EGL A10 PRO 125 , 125cc Dirt Bike Front view green

EGL A10 PRO 125 , 125cc Dirt Bike Green right side view

EGL A10 PRO 125 , 125cc Dirt Bike rear right side view green

EGL A10 PRO 125 , 125cc Dirt Bike rear view green

EGL A10 PRO 125 , 125cc Dirt Bike Left rear side view green

EGL A10 PRO 125 , 125cc Dirt Bike right handlebar

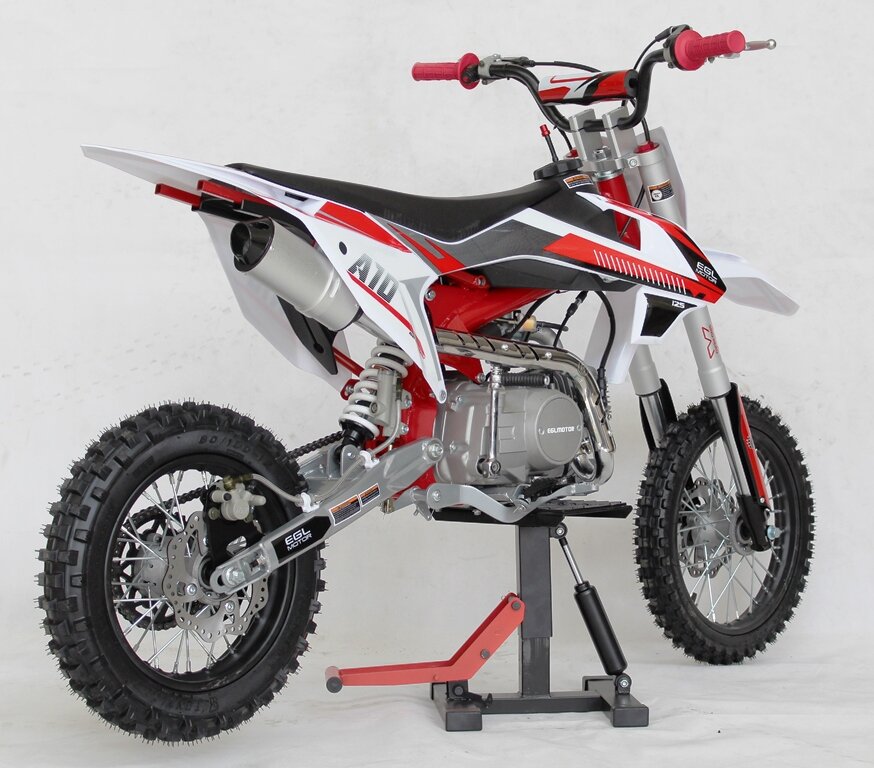

EGL A10 PRO 125 , 125cc Dirt Bike Left front view red
