EGL A08-A PRO 110 110cc Dirt Bike

Youth Dirt Bike



EGL A08-A PRO 110

SPECS:

Engine type:  110cc, Zongshen brand, single cylinder, 4 stroke, air cooled, 3 speed semi-auto

Start: Electric & Kick Start

Battery:  12V/4Ah lead-acid

Bore x Stroke:  52.4*49.5

Compression:  9.1:1

Max.power:  5.0/8000

Max.torque:  6.7/5500

Ignition mode:  CDI

Carburetor:  PZ22

Sprocket:  front: 428-14; rear:428-41

Suspension system:  front: 6300mm; rear: 280mm

Brake system:  front and rear all disc brakes, φ190mm disc

Handle bar:  steel

Rim Size:  steel, front: 1.4-12 ; rear: 1.4-10

Tire Size:  front: 2.75-12 ; rear: 3.00-10

Max. loading:  55kg

Tank Capacity:  4.5L

Seat Height:  650mm

Wheel Base:  1020±3mm

Ground Clearance:  180mm

Dimensions (L*W*H):  1440mm*660mm*910mm

G.W/N.W:  58kg/68kg

Package size:  1270*430*620mm

FCL: QTY 40HQ:184pcs

EGL A08-A PRO 110 110cc Dirt Bike Youth Dirt Bike



Mefast Wholesale

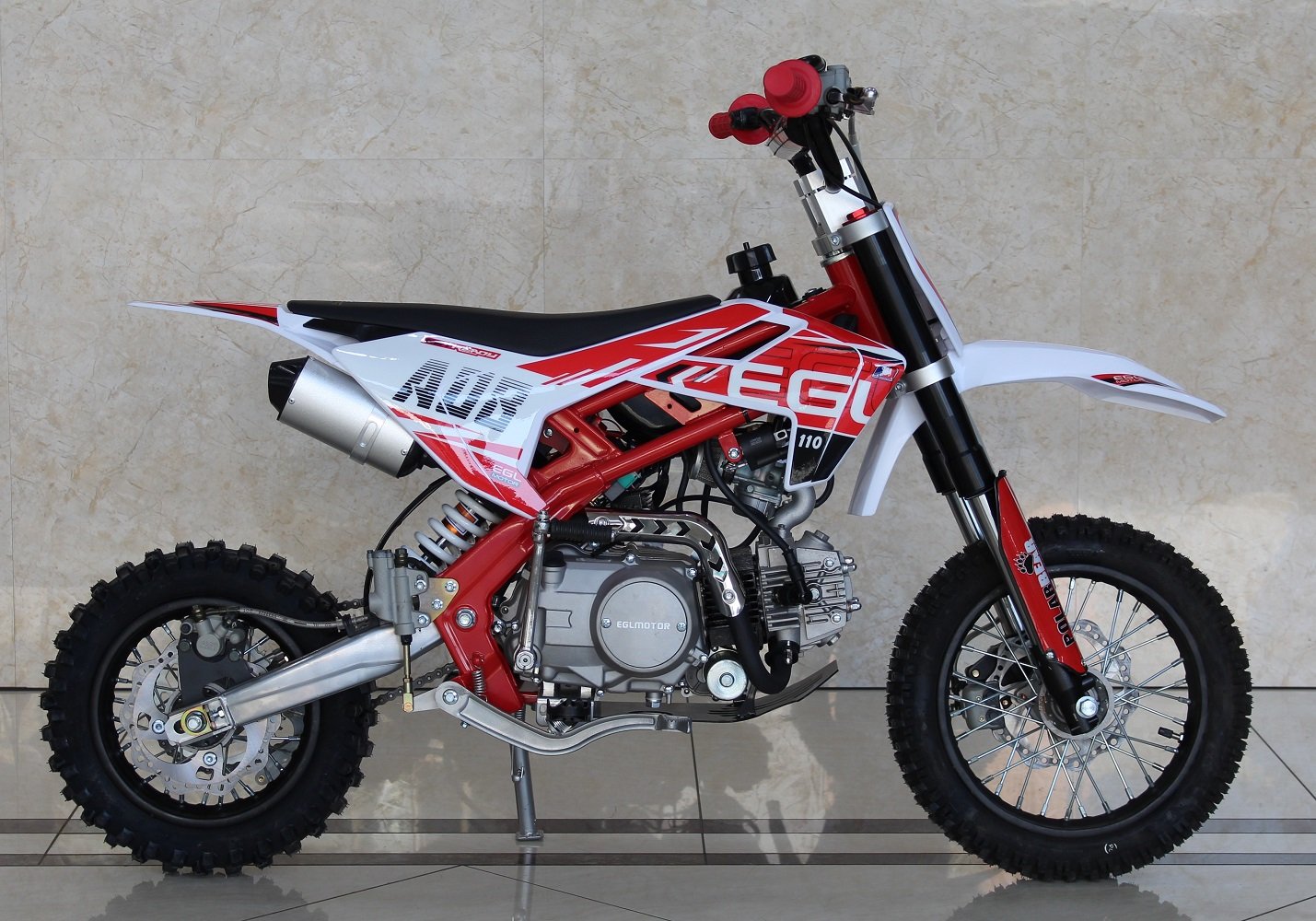

EGL A08-A PRO 110 110cc Dirt Bike Youth Dirt Bike Red
