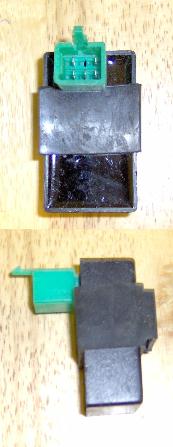

How 110cc CDI Works
CDI
A Fire wire
Hot output to coil A
For Honda copy
|
A Fire wire ( Output to coil) |
||||
 |
 |
|||
| A. Output to coil | ||||
| Current input from B. is
stored in capacitor , released thru A. when pulse is received from E. |
||||
| A. is the only output
for this CDI |
||||
| Voltage check + Pos probe on A - Neg probe ground to engine read 4-7 VDC pulse No reading Check Ground to frame Check Disable C Check Pick-Up E Check hot Input from CDI B. |
||||
 |
||||
| Seen
above , spade ground connector on coil is marked green |
