| Model Name |

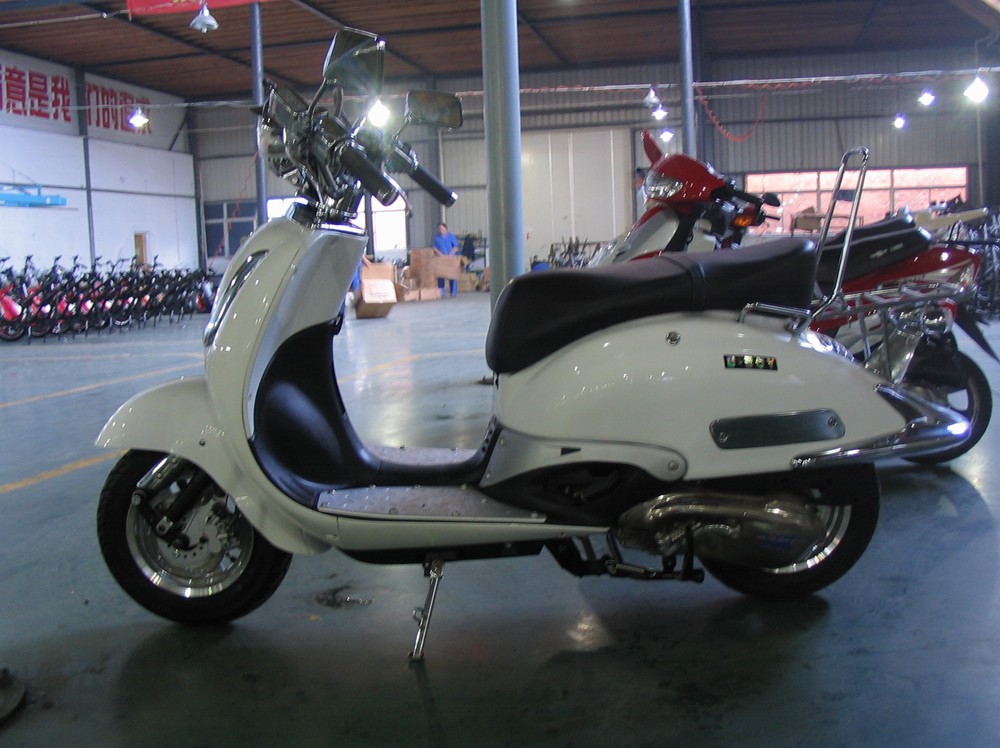

HY150T-23 (new design) |
| Engine Displacement (cc) |
149.6ml |
| Engine Style |
Single cylinder, 4-stroke, air-cooled |
| Engine Type |
157QMJ |
| Bore*Stroke (mm*mm) |
57.4*57.8 |
| Compression Rate |
9.2:1 |
| Ignition |
CDI |
| Transmission |
CVT |
| Net Weight (kg) |
94 |
| Gross Weight (kg) |
115 |
| Dimensions (mm) |
1,880*975*1,080 |
| Wheel Base (mm) |
1,230 |
| Tire
Size (mm) |
FRONT:3.50-10,
REAR: 3.50-10 |
| Fuel Capacity (L) |
5 |
| Max Loading Weight (kg) |
150KG |
| Max Speed (km/h) |
85 |
| Max power (Kw/r/min) |
7.0/7500 |
| Max torque (N.m/r/min) |
9.0/6000 |
| Brake Operations (F/R) |
Hand/Hand |
| Brake Mode (F/R) |
Disc/Drum |
| Economic Fuel Consumption
(L/KM) |
≤2.9/100 |
| Starting System |
Electric/kick |
| Battery Size (V/AH) |
12V/7Ah |
| Ground Clearance (mm) |
110 |
| QTY/40HQ/20FT |
72/24 |
|
|
