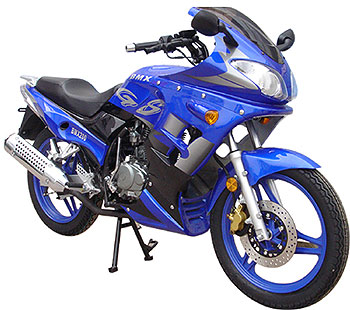

| MC-09-200 (RSL-200) |
| Item no.: MC-09-200 (RSL-200) |
| Dimension ((L??B??H mm):2090*670*1130 |
| Wheel base (mm):1330 |
| Min.Ground Clearance (mm):160 |
| Dry Weight:140kg |
| Height Of Seat (mm): 790 |
| Fuel Tank Capacity(L): 13 |
| Engine Type:Single-cylinder, air -cooled,four-stroke |
| Engine model: 163FML |
| Bore??Stroke:62mm*49.5mm/63.5mm*62.5mm |
| Displacement: 149.4ml/196.9ml |
| Maximum Power:10kw/8500r/min/12.5kw/8500r/min |
| Maximum Torque:10.5N.m/7500r/min/15N.m/7000r/min |
| Clutch: Wet multi-plate |
| Lubrication: Pressure/splash |
| Start: Kick start/electric start |
| Ignition: C.D.I |
| Transmission: 4 gear or 5 gear |
| Max. Speed (km/h): 90km/h/100km/h |
| Economical Fuel Consumption (l/100km): ??2.2L/100km/??2.3L/100km |
| Front Type Size and Air Pressure: 100/80-18/225KPa |
| Rear Type Size and Air Pressure: 100/90-16/225KPa |
| Climbing Ability (??): ??18?? |
| Exhaust Index: CO??3.8%??HC??800ppm |
| Start Performance: ??15s |
| Braking system (front/rear): disk /drum |
| Brake Performance: ??7m/30km/h |
