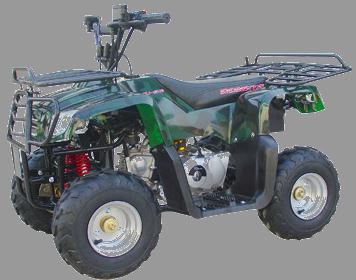

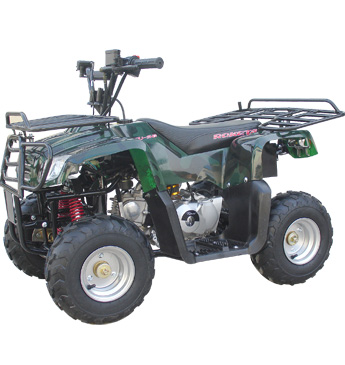

ATV-08
90cc Mini Utility Quad
| ENGINE |
||
| 90 cc Air cooled, single cylinder, four stroke |
Max. Torque:3.0N.M /5500~6500 rpm | |
| Power (Kw/r/min):2.3KW /7000rpm | Max Speed: 40Km/h | |
| Displacement: 90ml |
||
| DEMINSIONS |
||
| Wheelbase: 750mm | L 1230 x W 710 x H 830 | |
| Seat Height 560mm |
Dry Weight: 79 kg | |
| Min Ground Clearance: 80 mm | ||
| TIRES |
||
| Front : 145/70-6 | Rear : 145/70-6 | |
| TRANSMISSION |
||
| Fully automatic |
Chain Drive |
|
| ELECTRIC |
||
| CDI Ignition |
Battery:12V-5AH | |
| Electric start |
||
| BRAKES |
||
| Rear: Hydraulic Disk | ||
| SUSPENSION |
||
| Front : Indipendent Double Aarm Spring shocks |
Rear : Spring mono-shock |
|
| Max. Load: 75 kg |
FUEL |
|
| Unleaded gasoline |
Fuel tank capacity : .9 ml |
|
| 40' Container :128pcs |
