ES1.2-12
Maintenance-Free Rechargeable Sealed Lead-Acid Battery
 |  |
| Model Number | Voltage | 5hr Rate |
20hr Rate |
100hr Rate |
Watts Per Cell |
Weight (lb.) | Length (in.) | Width (in.) | Height* (in.) |
| ES1.2-12 |
12 | 1.02 | 1.2 | N/A | N/A | 1.31 | 3.82 | 1.69 | 2.32 |
$12.50 S&H $10.00
| SPECIFICATIONS | |||
| Nominal Voltage (V): | 12V |
||
| Nominal Capacity: | 20hour rate ( 0.06A to 10.50V ) 1.2Ah |
||
| 10hour rate ( 0.12A to 10.50V ) 1.2Ah |
|||
| 5hour rate ( 0.204A to 10.20V ) 1.02Ah |
|||
| 1C ( 1.2A to 9.60V ) 0.54Ah |
|||
| 3C ( 3.6A to 9.60V ) 0.432Ah |
|||
| Weight: | 1.31 Lbs. (0.596 kg) |
||
| Internal Resistance (at 1KHz): | 78 mΩ |
||
| Maximum Discharge Current for 30 seconds: | 24A |
||
| Maximum Discharge Current for 5 seconds: | 48A | ||
| Operating Temperature Range: | Charge 0°C(32°F) to 40°C (104°F) |
||
| Discharge -15°C(5°F) to 50°C (122°F) |
|||
| Storage -15°C(5°F) to 40°C (104°F) |
|||
| Charge Retention (shelf life) at 20°C (68°F): | 1 month 92% |
||
| 3 month 90% |
|||
| 6 month 80% |
|||
| Charging Methods at 25°C (77°F) Cycle use: | Charging Voltage 14.4 to 15.0V |
||
| Maximum Charging Current 0.36A |
|||
| Standby use: | Float Charging Voltage 13.50 to 13.80V |
||
| Life expectancy Cycle Use: | 100% depth of discharge 250 cycles |
||
| 80% depth of discharge 350 cycles |
|||
| 50% depth of discharge 550 cycles |
|||
| Standby Use: | 3~5 years |
||
| Case Material: | (94-HB & 94V-0 flame retardant case) |
||

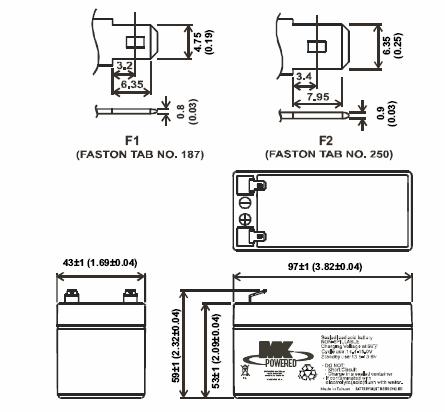

| Terminal: | F1 |
||
|
|||
