| 200GY SPECIFICATIONS |

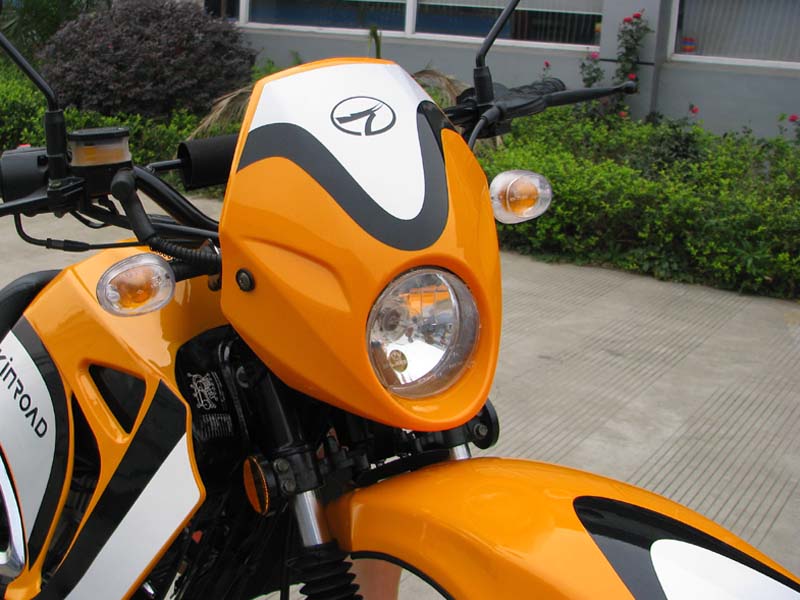

Head light
Brake and tail light
Turn signals
Street legal
|
Y
|
| Decals (Y/N) : |
Y |
| Remote start (Y/N) : |
Y |
| Remote engine stop (Y/N) : |
Y |
| Remote alarm (Y/N) : |
Y |
| Assembly required : |
Mirrors, battery, handle bar, front wheel,
front fender, headlight and cover,
rear foot rest, brake padel |
ENGINE INFO
|
| Engine type : |
4-stroke, single cylinder |
| Engine brand : |
* |
| Displacement : |
196 ml |
| Cooling : |
Air-cooled |
| Max horsepowe : |
14hp / 7500rpm |
| Max torque : |
14.5n.m / 6000rpm |
| Bore*stroke : |
2.7*2.1"
|
| Max speed : |
65 mph
|
| Climbing ability : |
20 degrees |
| Ignition : |
CDI |
| Starting system : |
Electric / kick |
| Battery : |
12V 7Ah |
| Carburetor : |
PZ30 |
| Engine oil : |
SAE 15W/40 |
CHASSIS ETC
|
| Clutch : |
manual |
| Transmission : |
5-speed |
| Driveline : |
chain |
| Driving wheel : |
Rear wheel drive |
| Suspension |
Front: hydraulic damper
Rear: double spring shock
|
Brake:
|
Front: Hand , disc
Rear: Foot , drum
|
| Tires |
Front: 2.75-21
Rear: 4.10-18 |
| Fuel capacity |
1.4 gal |
| Weight: |
Gross 290 lbs
Net 255 lbs |
| Max load : |
330lbs |
| DIMENSIONS |
| Wheelbase : |
54.3 inch |
| Overall Dimensions |
Length 83.5"
Width 32.7"
Height 46.9"
|
| Height to seat : |
33"
|
| Min ground clearance : |
11.4"
|
| Carton size : |
74*18.1*34.3"
|
|
