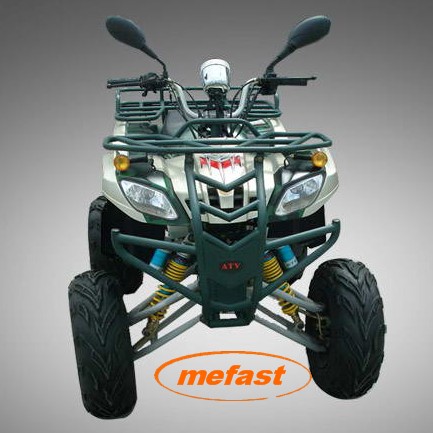

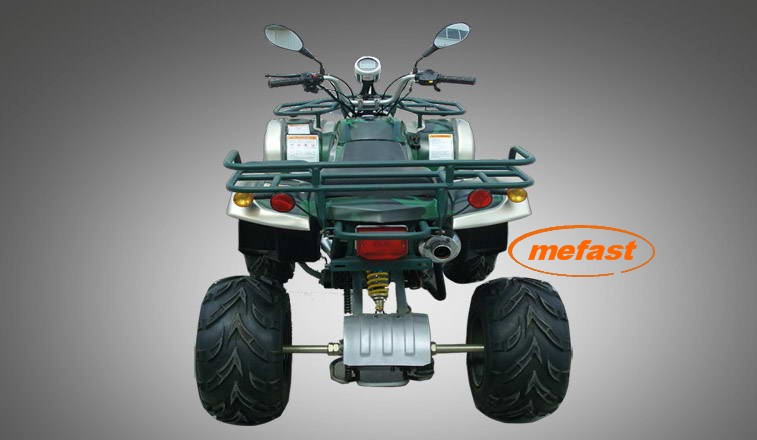

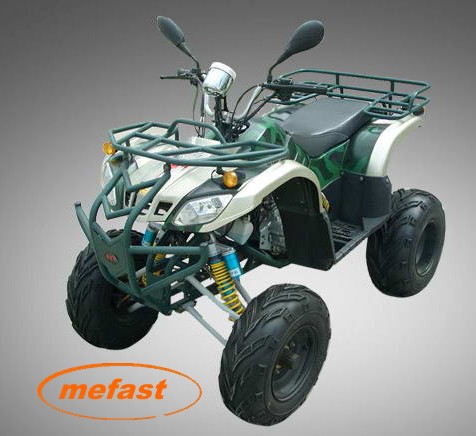

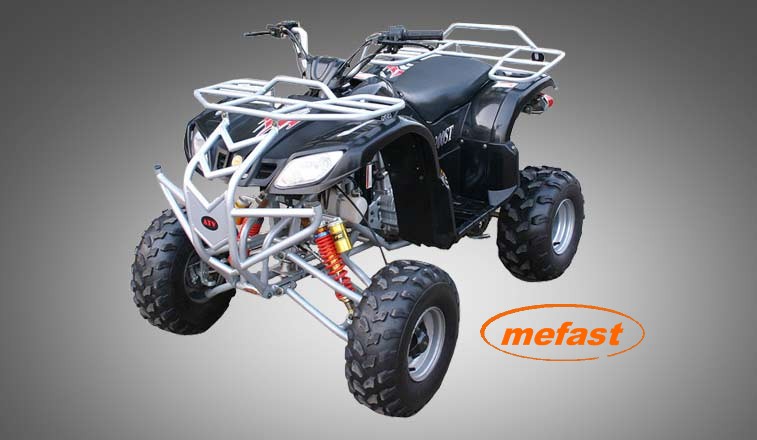

200cc ATV
GA013-5
|
Dimensions (L*W*H)（mm） |
1750*1060*1150 | Wheelbase (mm) | 1120 | ||||
| Distance between wheels(mm) | 930/770 | G.W/N.W（kg） | 190/163 | ||||
| Seat | 1 | Gas Tank Capacity (L) | 4±0.2L | ||||
| Type of Gas | Unleaded gasoline above NO.90 | Engine Type | single cylinder,4-stroke water cooled | ||||
| Displacement | 200cc | Rated Power (kw/rpm) | 10.8/8000 | ||||
| Max Torque (N∙m/rpm) | 14.5/6500 | Max Speed(Km/h) | 70 | ||||
| Storage Battery∕Accumulator | 12V.9Ah | Tyre Specification ( Front∕Rear) | 19*7-8/18*9.5-8 and 21*7-10/20*10-10 | ||||
| Tyre Pressure (Front∕Rear)(P.S.I/P.S.I) | 24/24 P.S.I | Overall Size (Carton Included mm) | 1485*840*835 | ||||
