HENSIM

HS-110U

Full Size 110cc Utility ATV

These quality products are availble at your local MacroMover Store now

POWER TRAIN
Engine 107cc air cooled, 4 stroke, single cylinder engine
Bore/Stroke 52.4mm/49.5mm (2.06in/1.94in)
Compression Ratio 9.1:1
Horsepower 7.48hp@8000rpm
Torque 7.2nm@5500rpm (5.31Lb-ft)
Fuel System Carbureted
Lubrication Wet Sump
Ignition CDI
Transmission 84? Chain Drive + (Reverse)
Gear Ratio Three gear-shift
Final Drive N/A
DIMENSIONS
Overall Length 1699mm (66.9in)
Overall Width 960mm (37.8in)
Overall Height 1016mm (40.0in)
Seat height 718mm (28.3in)
Ground Clearance 129mm (5.1in)
Wheelbase 1079mm (42.5in)
Dry Weight 148kg (326.28lbs)
CHASSIS
Suspension Front Double swing arm unit suspension
Front Travel 48mm (1.9in)
Suspension Rear Central unit shock absorber suspension
Rear Travel 43mm (1.7in)
Brakes Front Drum Brake
Brakes Rear Disc Brake
Tires Front 19.0 x 7.0 -8
Tires Rear 19.0 x 9.5-8
OTHER
Fuel Tank Capacity 6.6L (1.7Gal)
Color Blue, Red, Green, Black, Brown Camo, Green Camo
Battery Type 12V/7Ah

Left front view

Left side view

Front right view

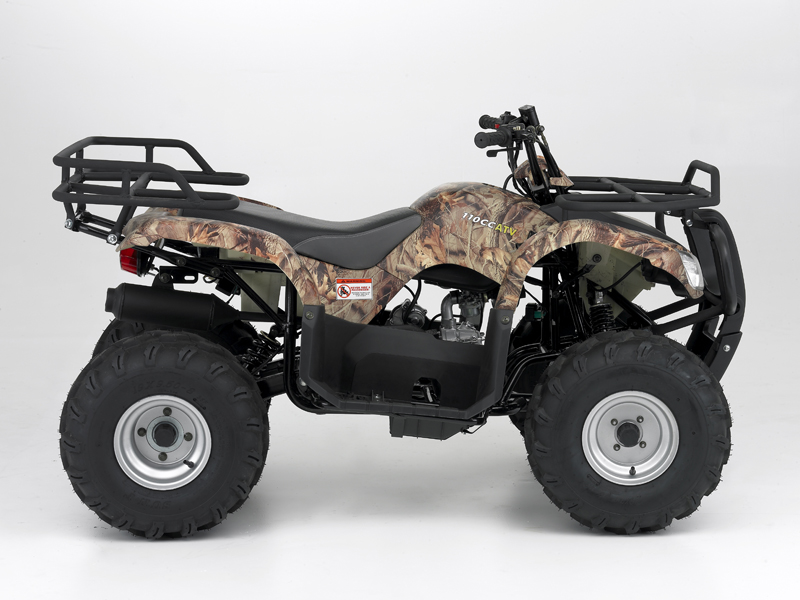

Right side view

Front view
