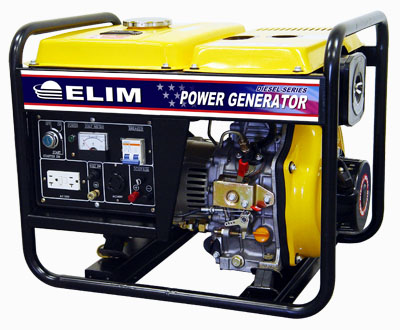

LDG2200CLE
2 KW
DIESEL GENERATOR
4.2HP
Electric Start
|
|
| Model Name | ELM2200CLE (LDG2200CLE) | |
|
Generator |
Type |
Brushless, 2 poles, Synchronous, Single Phase |
Voltage Regulator |
Capacitor | |
Frequency |
60 hz | |
|
Max. AC Output |
2.2KW (2.2 KVA) |
|
Rated AC Output |
2.0KW (2.0 KVA) |
|
Rated of amps |
16.7@120V, 8.3@240V, 8.3@12V | |
|
Engine |
Engine Type |
Single Cylinder, Vertical, Air-cooled, 4 stroke, Direct Injection Diesel |
|
Displacement |
211 cc |
|
|
Max. Output |
4.2HP/3600rpm |
|
|
Fuel |
Diesel |
|
|
Fuel Tank Capacity |
3.3Gal (12.5 L) |
|
|
Continuous Operation Hours |
12 hours |
|
|
Ignition System |
TCI |
|
|
Starting System |
Recoil + Electric Start |
|
|
Operating Noise Level (7m) |
80 dB(A) |
|
|
Feature |
Standard Features |
12V, Low Oil Shut Off |
|
Dimension |
Net Weight |
126.0 lbs (57 kg) |
Gross Weight |
136.4 lbs (62 kg) |
|
Product Dimension |
24 x 17.7 x 20.1 inch (610 x 450 x 510 mm) | |
Carton Dimension |
24.5 x 18.4 x 20.5 inch (619.8 x 467.4 x 520.7 mm) |
|

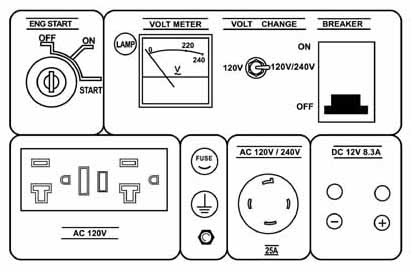

Outlet Diagrams |
 | |
