Model

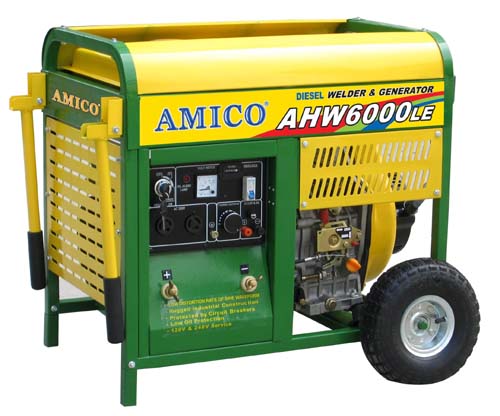

AHW6000LE

Frequency

60Hz

Voltage (AC)

120V/240V

Rated AC Power

6000W

Max. AC Power

6500W

DC Output

12V/8.3A

No-load Vp;tage(DC)

50V

Cont.Current (DC)

180A

Cont.Rated Voltage (DC)

25V--35V

Continuous load Rate

60%

Continuous Load Rate

80A--210A

Engine Speed

3600rpm

Power Factor

1.0(cosφ)

Starting Mode

Electric Start & Recoil

Net Weight

116kg

Dimensions (L×W×H)

700mm×500mm×620mm

Engine Model

AH186F(E)

Type

Single-cylinder, Vertical, 4-Stroke, Direct injection, Air-cooled Diesel Engine

Continuous Output

10HP

Bore × Stroke

86mm × 72mm

Displacement

418cc

Protection System

Low Oil, Warning System / Stop Device

Noise Level

68 db(A) at 7 meters

Fuel Tank Capacity

12.5L

Lube-oil Capacity

1.6L

Crankshaft Direction

Clockwise from flywheel end

Cooling Type

Force air-cooled
