Model

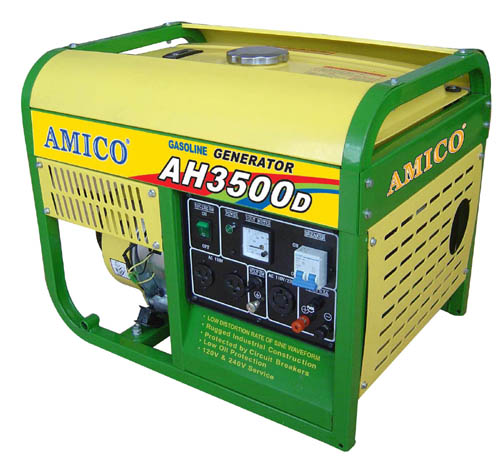

AH3500D

Frequency

60Hz

Voltage (AC)

120V/240V

Rated AC Power

3000W

Max. AC Power

3500W

DC Output

12V/8.3A

Engine Speed

3600rpm

Power Factor

1.0(cosφ)

Starting Mode

Recoil

Net Weight

48kg

Dimensions (L×W×H)

590mm×455mm×480mm

Engine Model

AH168F-2

Type

Single-cylinder, 4-Stroke, Air-Cooled, OHV, Gasoline Engine

Continuous Output

6.5HP

Bore × Stroke

68mm × 54mm

Displacement

196cc

Noise Level

65 db(A) at 7 meters

Fuel Tank Capacity

15L

Lube-oil Capacity

0.6L

Crankshaft Direction

Clockwise from flywheel end

Cooling Type

Force Air-Cooled
