Model

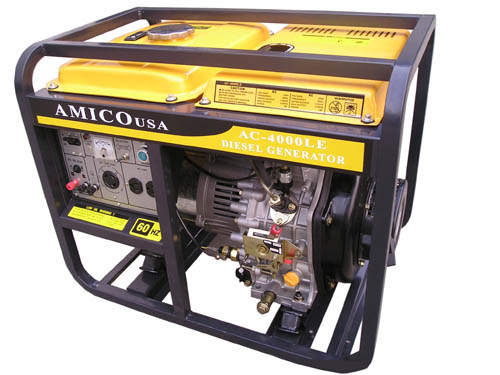

AC4000LE

Frequency

60Hz

Voltage (AC)

120V/240V

Rated AC Power

4000W

Max. AC Power

4500W

DC Output

12V/8.3A

Engine Speed

3600rpm

Power Factor

1.0(cosφ)

Starting Mode

Electric Start & Recoil

Net Weight

89kg

Dimensions (L×W×H)

720mm×455mm×545mm

Engine Model

AC178F(E)

Type

Single-cylinder, Direct injection Vertical, 4-Stroke, Air-cooled Diesel Engine

Continuous Output

7HP

Bore × Stroke

78mm × 62mm

Displacement

296cc

Protection System

Low Oil, Warning System / Stop Device

Noise Level

72 db(A) at 7 meters

Fuel Tank Capacity

15L

Lube-oil Capacity

1.1L

Crankshaft Direction

Clockwise from flywheel end

Cooling Type

Force air-cooled
