Model

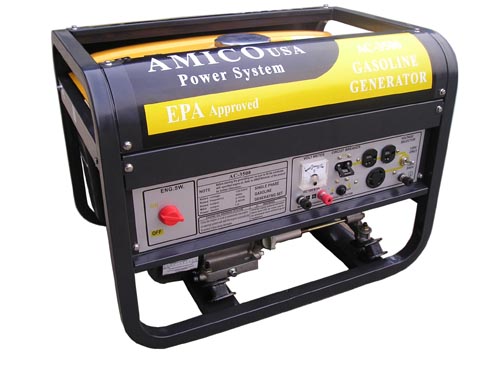

AC-3500

Frequency

60Hz

Voltage (AC)

120V/240V

Rated AC Power

3000W

Max. AC Power

3500W

DC Output

12V/8.3A

Engine Speed

3600rpm

Power Factor

1.0(cosφ)

Starting

Recoil

Net Weight

48kg

Ignition model

Transistor、Zero touch point

Dimensions (L×W×H)

590mm×435mm×435mm

Engine Model

168F-2

Type

Single cylinder, 4-stroke, Air-Cooled, OHV, Gasoline Engine

Continuous Output

6.5HP

Bore × Stroke

68mm × 54mm

Displacement

196cc

Noise Level

65 db(A) at 7 meters

Fuel Tank Capacity

15L

Lube-oil Capacity

0.6L

Crankshaft Direction

Anti-clockwise from flywheel end

Cooling Type

Force air-cooled
