JF200 JF168 Parts Diagram

Online Parts

334 874 3831

Cylinder Head System Assembly

JF200 Head Diagram 1 Cylinder Head Comp
2 In. Valve Guide
3 Valve Guide
4 Valve Guide Clip
5 Cylinder Head Gasket
6 Head Cover Comp
7 Valve Cover Gasket
8 Breather Tube
9 Flange Bolt 6x12
10 Stud Bolt 6x109 JF168
11 Stud Bolt 8x32
12 Dowel Pin 10x16
13 Flange Bolt 8x60
14 Spark Plug

Cylinder Crankcase

JF200 Diagram Cylinder Crankcase
1 Cylinder Assy.
2 Oil Level Switch Assy.
3 Governor Assy.
4 Governor Slider
5 Governor Arm Shaft
6 Lock Pin 8mm
7 Flange Bolt 6x20
8 Drain Plug Bolt
9 Thrust Washer 6mm
10 Drain Plug Washer10.2mm
11 Governor Holder Clip
12 Radial Ball Bearing
13 Oil Seal 25x41.25x6
14 O-Ring 14mm
15 Flange Nut 10mm
16 Plain Washer 6mm



Crankcase Cover

JF168 Crankcase Cover









1 Crankcase Cover
2 Crankcase Cover
3 Gasket、Case Cover
4 Oil Filler Dip Stick
5 Oil Filler Cap Assembly
6 Oil Filler Cap Assembly
7 Oil Filler Cap Gasket
8 Oil Filler Cap Gasket
9 Oil Seal、25x41.25x6
10 Dowel Pin 8x14
11 Flange Bolt 8x32
12 Radial Ball Bearing
13 Crankcase Cover
14 Radial Ball Bearing


Crankshaft Assembly

JF200 Crankshaft









1 Crankshaft Comp
2 Key 5x5x30
3 Special Woodruff Key

Piston  Piston Rod

JF168 Piston




1 Piston Ring Set
2 Piston
3 Piston Pin
4 Connecting Rod Assy.
5 Connection Rod Bolt
6 Piston Pin Clip 18mm

Camshaft Pushrod Rocker-Arm Valve

Valve diagram




1 Camshaft Assy.
2 Push Rod
3 Valve Rocker Arm
4 Valve Lifter
5 Rocker Arm Pivot
6 Weight Return Spring
7 In. Valve
8 Ex. Valve
9 Valve Spring
10 IN. Valve Spring
11 EX. Valve Spring
12 Ex Valve Rotator
13 Push Rod Guide Plate
14 Pivot Bolt(8mm)
15 Pivot Adjusting Nut

Recoil Starter
JF200 Recoil Starter
1 Recoil Starter Assy.
2 Set Screw
3 Ratchet Guide
4 Spring Friction
5 Starter Ratchet
6 Ratchet Spring
7 Recoil Starter Reel
8 Recoil Starter Spring
9 Recoil Starter Case Comp
10 Recoil Starter Rope
11 Recoil Starter Knob
12 Flange Bolt 6x8
13 Recoil Starter Spacer

Carburetor

JF168 JF200 Carburetor







1 Insulator Gasket
2 Carburetor Insulator
3 Carburetor Gasket
4 Carburetor
5 Carburetor Spacer
6 Choke Lever Comp

Flywheel Coil

JF168 Coil




1 Flywheel Comp
3 Cooling Fan
4 Starter Pulley
5 Special Nut
6 Ignition Coil Assy.
7 Flange Bolt 6 X 12

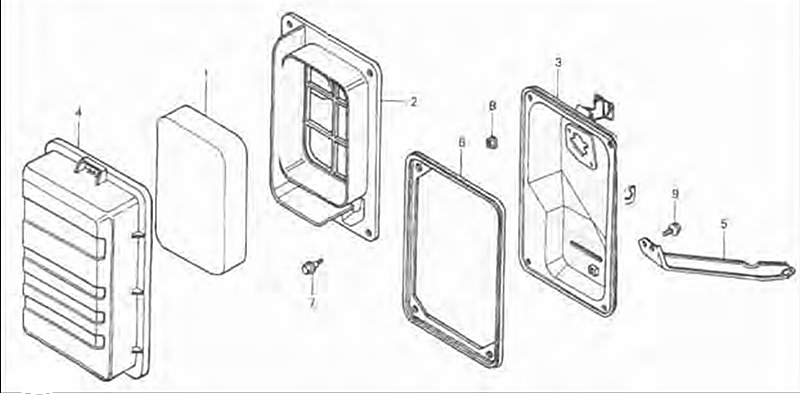

Air Cleaner
JF200 Air Filter Assembly

JF200 Air Filter




1 Outer Filter
2 Air Cleaner
3 Air Cleaner Case
4 Air Cleaner Cover
5 Air Cleaner Bracket
6 Air Cleaner Seal
7 Winker Setting Bolt
8 Flange Nut 6mm
9 Flange Bolt 6x10

JF168 JF200 Parts
