| Engine /
Performance |
| Engine |
Single Cylinder, 4-stroke Air cooled 227.4cc |
| Transmission |
5 speed manual, manual clutch |
| Final Drive |
Chain |
| Ignition System |
CDI |
| Starting System |
Push Button Electric |
| Battery |
12V-7AH |
| Maximum Speed |
60+ MPH, +/- 5MPH
(Depending on Riders Weight and Road Conditions) |
| Fuel Capacity |
3.43 Gallon |
| Chassis /
Suspension |
| Tires |
Front 110/70/17 Rear 130/70/17 |
| Frame |
Stamped Steel |
| Front Suspension |
41mm conventional forks |
| Front Brakes |
270mm Single Disk, 2 Piston Caliper |
| Rear Brakes |
220mm Single Disk, 2 Piston Caliper |
| Handlebars |
Fork Tube Mounted |
| Lighting /
Controls |
| Lighting |
Parking lamps
Headlight , Hi Low
Turn signals
Tailight / Brakelight
Passing Switch
Lighting off ,Parking on switch
Dash backlight |

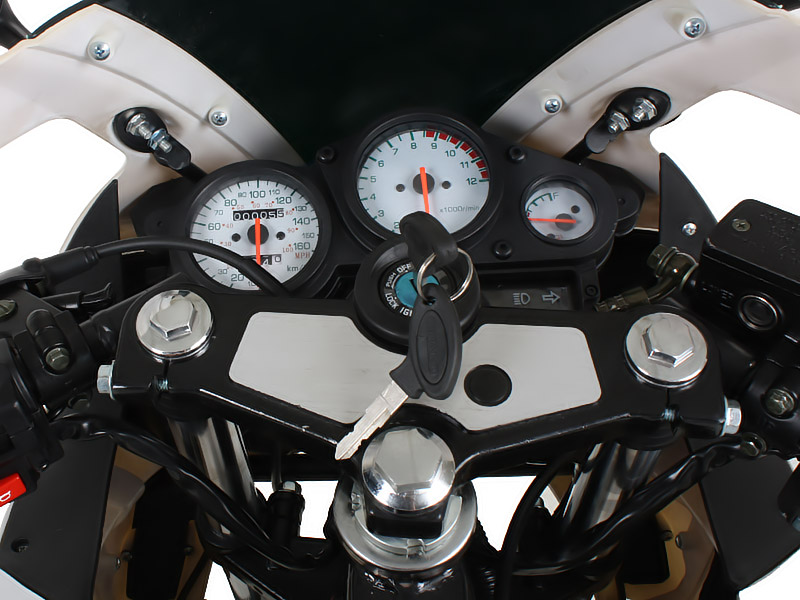

| Instrumentation |
Speedometer
Tachometer
Neutral Indicator
Hi Beam Indicator
Gear Position Indicator
Turnsignal Indicator
Odometer
Trip |
| Foot Shifter |
Y |
| Side Stand |
Y |
| Centerstand |
Y |
| Brake Pedal |
N |
| Tool Kit |
Y |
| Owner's Manual |
Y |
| Capacities
/ Dimensions |
| Weight (Dry) |
304 lbs. |
| Horsepower |
18.77 |
| Overall Length |
82.28 inches |
| Overall Height |
37.0 inches |
| Overall Width |
28.74 inches |
| Seat Height |
31.5 inches |
| Max Rider Weight |
300 lbs. |
| Assembly |
| Assembly |
95% Assembled
|
